| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
440 pcs
|
440 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
44 pcs
|
44 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
20 pcs
|
20 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Cable Exit | |
| Cable Opening | |
| Color | |
| Diameter | |
| Features | |
| Material | |
| Shell Size | |
| Tape & Reel | |
| Thread Size | |
| Type |

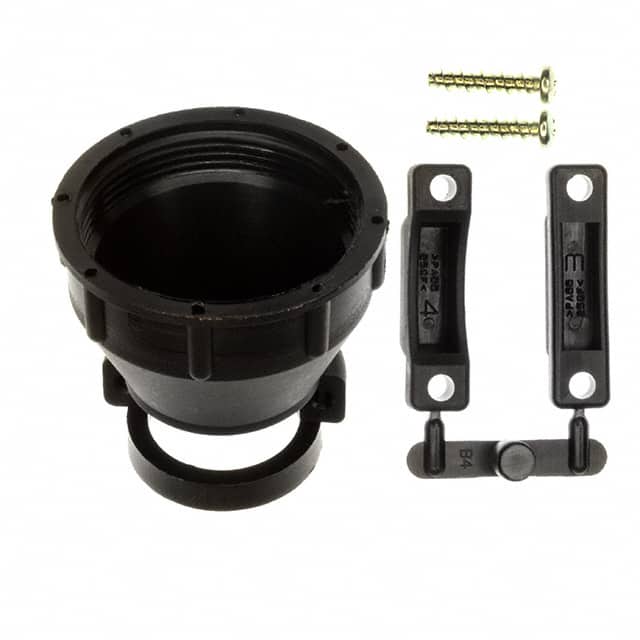

This is a backshell with integrated cable clamp designed for use with circular connectors. It provides strain relief and cable management by securing the cable at the connector entry point. The shell size 23 and 1 3/8-18 UNEF thread ensure compatibility with standard circular connector backshell interfaces.
It features a 180° cable exit for straight cable routing, accommodating cable openings up to 0.703 inches (17.86 mm). The outer diameter is 1.600 inches (40.64 mm). The backshell is constructed from durable black thermoplastic and includes clamp screws to secure the cable.
Commonly used in industrial, telecommunications, and military/aerospace applications where reliable cable termination is required. The thermoplastic material offers good insulating properties and is resistant to environmental stresses.
Shell size 23.
1 3/8-18 UNEF.
180°.
0.703 inches (17.86 mm).
Thermoplastic, black.
Yes, it features clamp screws for cable securing.
RoHS3 compliance is stated but unverified.
