1825132 Phoenix Contact 1825132 is a 3-position terminal block header with a 5.08mm pitch, right angle orientation, through hole mounting, and solder termination.
Mfr Part #:

1825132

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1825132 is a 3-position terminal block header with a 5.08mm pitch, right angle orientation, through hole mounting, and solder termination.
✓ Total Stock: 43 pcs

1825132 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
43 pcs
On Request
43 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1825132 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Header Orientation
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1825132 Description

Short technical summary and product information.

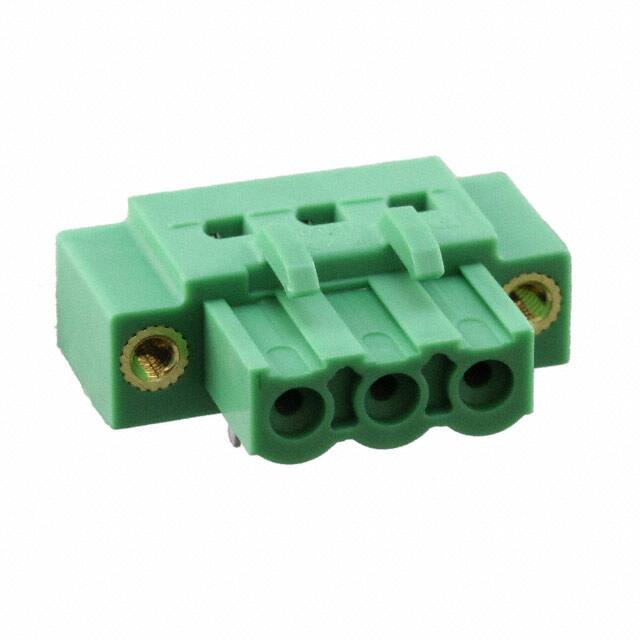

The Phoenix Contact 1825132 is a 3-position terminal block header designed for use in industrial control and automation systems. It features a 5.08mm (0.200 inch) pitch and a right-angle (90 degree) header orientation, allowing for space-saving connections on printed circuit boards. The header is a female socket type, with through hole mounting and solder termination for reliable mechanical and electrical connections. It is rated for 300V and 10A, with a tin contact mating finish suitable for general-purpose applications. The green housing includes mating and mounting flanges as well as retention latches for secure connection with matching plugs.

1825132 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1825132 Terminal Block Header, 3 Positions, 5.08mm Pitch, Right Angle, Through Hole
Subcategory: Headers, Plugs and Sockets

1825132 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1825132 Features

  • 3 positions with 5.08mm pitch spacing.
  • Right angle 90-degree header orientation.
  • Through hole mounting with solder termination.
  • Rated for 300V and 10A operation.
  • Includes mating and mounting flange.

1825132 Applications

  • Industrial control panel wiring connections.
  • PLC and I/O module interface boards.
  • Power distribution terminal blocks.
  • Automation equipment PCB connections.

1825132 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the pitch of the Phoenix Contact 1825132 terminal block header?

The pitch is 5.08mm (0.200 inches).

How many positions does the 1825132 header have?

It has 3 positions, with 1 level and 3 positions per level.

What is the voltage and current rating for this terminal block header?

It is rated for 300V and 10A.

What is the mounting type for the Phoenix Contact 1825132?

It is a through hole mount component with solder termination.

What is the header orientation of this part?

The header orientation is 90 degrees, right angle.
