| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,700 pcs
|
1700 pcs | On Request | 1 | On Request | On Request | 2232 | On Request | On Request | |
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Actuator Level | |
| Actuator Type | |
| Circuit | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| Height Above Board | |
| Mounting Type | |
| Number of Positions | |
| Operating Temperature | |
| Pitch | |
| Termination Style | |
| Voltage Rating | |
| Washable |

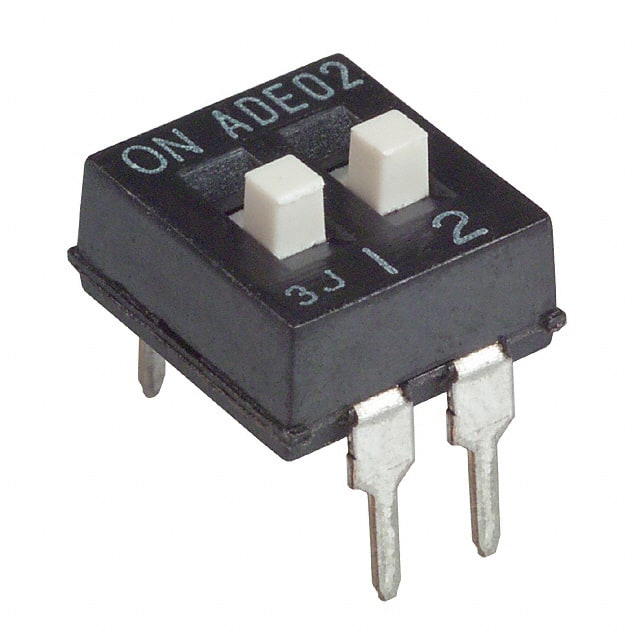

The TE Connectivity 1825057-1 is a single-pole, single-throw (SPST) DIP switch with two positions. It is designed for through-hole mounting and features a standard slide actuator.
This switch is rated for a current of 100mA and an operating voltage of 24VDC. The contact finish is gold over a copper alloy material, ensuring reliable connections. The terminal pitch is 2.54mm, and the height above the board is 5.80mm.
With an operating temperature range of -30°C to 85°C, this DIP switch is suitable for various environmental conditions. It is also specified as washable and has a Moisture Sensitivity Level (MSL) of 1, indicating unlimited shelf life under standard conditions.
The RoHS status is compliant with RoHS3 regulations, and the REACH status is unaffected. This component is ideal for applications requiring manual configuration and switching in electronic circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.75 | $0.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The 1825057-1 DIP switch has a current rating of 100mA.
The operating voltage for the 1825057-1 DIP switch is 24VDC.
The 1825057-1 DIP switch has 2 positions.
The 1825057-1 DIP switch uses a standard slide actuator.
The 1825057-1 DIP switch is designed for through-hole mounting.
The operating temperature range for the 1825057-1 DIP switch is -30°C to 85°C.
Yes, the 1825057-1 is RoHS3 Compliant.
