1823104 Phoenix Contact 1823104 is a 4-position, 5.08mm pitch PCB terminal block with push-in spring connection and THR solder mounting.
Mfr Part #:

1823104

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1823104 is a 4-position, 5.08mm pitch PCB terminal block with push-in spring connection and THR solder mounting.
✓ Total Stock: 260 pcs

1823104 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
260 pcs
On Request
260 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1823104 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Connection Method
Current
Current Rating
Halogen Free
Height
Industrial Grade
Lead Spacing
Lead Style
Length
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
SVHC Present
Storage Temperature
Tape & Reel
Termination Style
Voltage
Voltage Rating
Width
Wire Gauge
Wire Termination
View Similar Products (0)

1823104 Description

Short technical summary and product information.

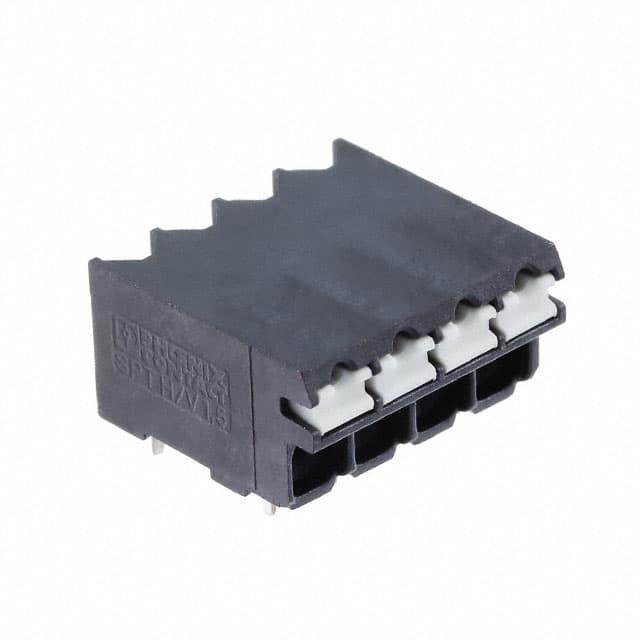

The Phoenix Contact 1823104 (SPT-THR 1,5/ 4-H-5,08 P26) is a 4-position PCB terminal block with a 5.08mm pitch. It features a push-in spring connection method for tool-free wire termination, accepting solid or flexible conductors from 0.2 mm² to 1.5 mm² (24-16 AWG). The terminal block is rated for a nominal current of 13.5 A and a nominal voltage of 320 V, with a rated surge voltage of 4 kV.



Designed for THR (Through-Hole Reflow) soldering, this component is suitable for automated assembly processes. The mating orientation is horizontal with the board, and the wire termination is screwless using a leg spring, push-in spring mechanism. The insulating material is LCP (Liquid Crystal Polymer) with a flammability rating of UL 94 V0.



The terminal block has a compact footprint with dimensions of 13.6 mm length, 19.24 mm width, and 7.7 mm height. It accepts a stripping length of 8 mm and features solder pins with dimensions of 0.7 x 0.3 mm. The part is UL and cUL recognized, and EAC certified.

1823104 Quick Information

Product Type: PCB Terminal Block
Series: SPT-THR 1,5/ 4-H-5,08 P26
Canonical Name: PCB terminal block SPT-THR 1,5/ 4-H-5,08 P26
Subcategory: Wire to Board

1823104 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1823104 Features

  • 4 positions with 5.08mm pitch spacing.
  • Push-in spring connection for tool-free wiring.
  • Rated for 13.5 A and 320 V.
  • UL 94 V0 flammability rated LCP insulator.
  • THR solder mounting for automated assembly.

1823104 Applications

  • Ideal for wire-to-board connections in industrial controls.
  • Suitable for power distribution in PCB assemblies.
  • Used in building automation and lighting systems.
  • Applicable in HVAC and security system controllers.

1823104 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1823104 terminal block have?

It has 4 positions.

What is the pitch of the Phoenix Contact 1823104?

The pitch is 5.08 mm.

What is the current rating of the 1823104?

The nominal current is 13.5 A.

What is the voltage rating of the 1823104?

The nominal voltage is 320 V (rated voltage III/2).

What is the mounting type for this terminal block?

Through Hole (THR soldering).

What wire gauge does the 1823104 accept?

It accepts 24-16 AWG solid or flexible conductors.

What is the flammability rating of the insulating material?

UL 94 V0.
