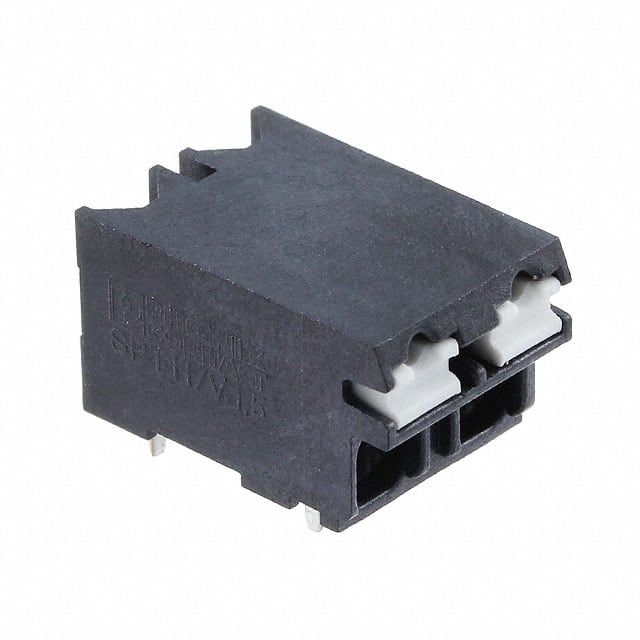

1823081 Phoenix Contact 1823081 is a 2-position wire-to-board PCB terminal block with 5.08mm pitch and push-in spring termination. It is rated for 13.5A nominal current and 320V rated voltage (III/2).
Mfr Part #:

1823081

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1823081 is a 2-position wire-to-board PCB terminal block with 5.08mm pitch and push-in spring termination. It is rated for 13.5A nominal current and 320V rated voltage (III/2).
✓ Total Stock: 280 pcs

1823081 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
280 pcs
On Request
280 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1823081 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Current
Height
Hole Diameter
Lead Spacing
Lead Style
Length
Mating Orientation
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Voltage
Width
Wire Gauge
Wire Termination
View Similar Products (0)

1823081 Description

Short technical summary and product information.

The Phoenix Contact 1823081 SPT-THR 1,5/ 2-H-5,08 P26 is a 2-position PCB terminal block designed for THR soldering, enabling integration into the SMT reflow process. It features a push-in spring connection for tool-free wire termination, accepting solid and flexible conductors from 0.2 to 1.5 mm² (16-24 AWG).



Key electrical ratings include a nominal current of 13.5A per EN-VDE and a rated voltage of 320V (overvoltage category III/2). The block has a rated surge voltage of 4 kV and is built with an LCP (Liquid Crystal Polymer) insulating material rated UL 94 V-0 for flammability.



Mechanically, the part has a 5.08mm pitch, measures 13.6mm in length, 9.08mm in width, and 7.7mm in height. It offers horizontal mating orientation relative to the PCB and includes 0.7 x 0.3mm solder pins with a 2.6mm length. The recommended PCB hole diameter is 1.1mm.

1823081 Quick Information

Product Type: PCB Terminal Block
Series: SPT-THR 1,5
Canonical Name: PCB Terminal Block SPT-THR 1,5/ 2-H-5,08 P26
Subcategory: Screwless Push-In Spring Connection

1823081 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1823081 Features

  • 2 positions with 5.08mm pitch.
  • Push-in spring termination, no tools required.
  • THR soldering for SMT compatible process.
  • Rated 13.5A nominal current, 320V voltage (III/2).
  • UL 94 V-0 flammability rated LCP insulator.

1823081 Applications

  • Wire-to-board connections in industrial controls.
  • Power distribution in PCB mounted terminal blocks.
  • Space-constrained designs requiring horizontal wire entry.
  • Automation equipment and building technology.

1823081 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1823081 terminal block have?

The 1823081 has 2 positions.

What is the pitch of the Phoenix Contact 1823081?

The pitch is 5.08 mm.

What is the current rating of the 1823081?

The nominal current rating is 13.5 A per EN-VDE.

What is the voltage rating of the 1823081?

The rated voltage is 320 V for overvoltage category III/2.

What mounting type does the 1823081 use?

It uses THR soldering, which is a through-hole variant compatible with the SMT reflow process.

What wire gauge range does the push-in spring accept?

It accepts 16-24 AWG, equivalent to 0.2 to 1.5 mm² solid or flexible conductors.

Is the 1823081 RoHS compliant?

Yes, it is indicated as RoHS3 compliant, though this has not been verified against an official certificate.
