| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3 pcs
|
3 pcs | On Request | 1 | On Request | On Request | 0801 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size | |
| Shell Size, Connector Layout | |
| Tape & Reel | |
| Termination |

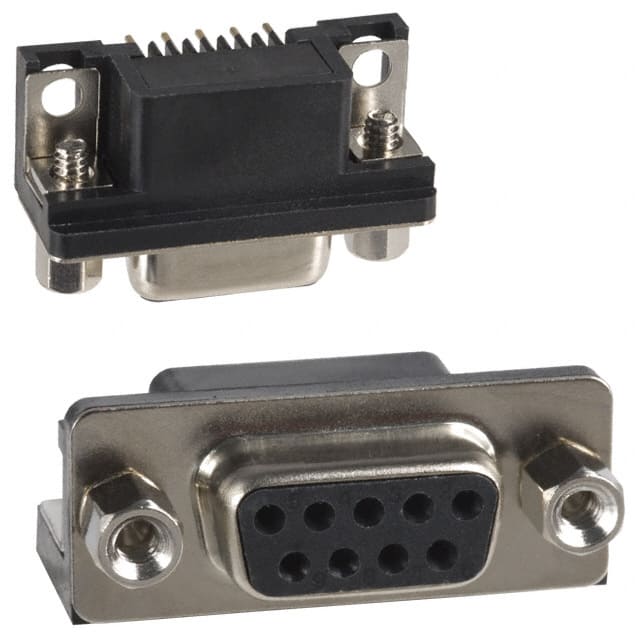

The 182-009-213R181 is a D-Sub receptacle from NorComp Inc. with 9 female socket contacts arranged in 2 rows. It features a right-angle solder termination for space-saving PCB mounting and supports panel mount installation with a mating side female screwlock (4-40) flange. The shell is steel with nickel plating and includes a ground strap. Contacts are finished with gold flash for reliable signal connections. The insulator material is rated UL94 V-0 for flammability. Current rating is 5A per contact. Backset spacing is 0.318" (8.08mm). This connector is RoHS3 compliant and REACH unaffected with MSL 1.
9 positions.
5A per contact.
Panel mount, through hole, right angle.
Gold flash.
1 (DE, E).
UL94 V-0.
Yes, mating side female screwlock (4-40).
