| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
200 pcs
|
200 pcs | On Request | 1 | On Request | On Request | N/A | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

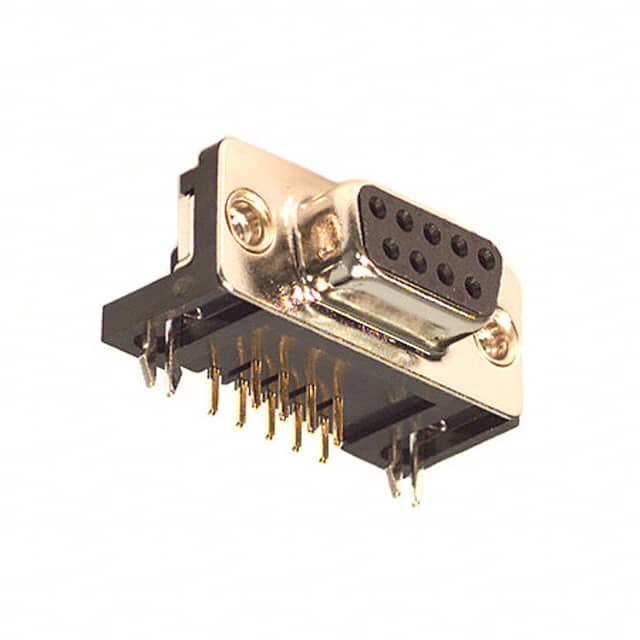

The NorComp Inc. 182-009-212-531 is a 9-position D-Sub receptacle connector with female sockets. It features a right angle solder termination and a panel mount, through hole mounting style. The connector has a steel shell with tin plating and a shell size of 1 (DE, E).
This connector includes a board lock feature and a flange feature with housing/shell (4-40) threads. The backset spacing is 0.318" (8.08mm). The contacts are signal type with a gold flash finish. The connector is rated for 5A current.
The insulator material has a UL94 V-0 flammability rating. This D-Sub connector assembly is suitable for applications requiring a reliable 9-pin interface with right angle orientation.
| Qty | Low | High |
|---|---|---|
| 180+ | $0.62 | $0.62 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It is a D-Sub receptacle with female sockets.
It has 9 positions arranged in 2 rows.
It supports panel mount and through hole mounting with a right angle orientation.
The current rating is 5A.
The contacts have a gold flash finish.
