| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,000 pcs
|
5000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Insulation | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Tape & Reel | |
| Terminal Type | |
| Termination | |
| Termination Style |

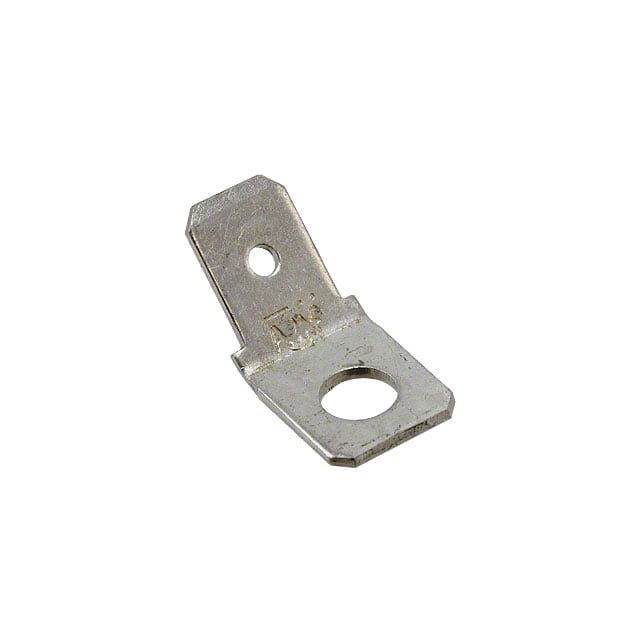

The TE Connectivity 181949-2 is a non-insulated male quick connect tab designed for reliable electrical connections in board and chassis mounting applications. The tab measures 0.250" (6.35mm) in width, 0.032" (0.81mm) in thickness, and 0.307" (7.80mm) in length, providing a standard size for quick disconnect systems.
The terminal features an angled 45° design, which facilitates easier wire routing and connection in tight spaces. The contact is made of brass with a tin plating, offering good conductivity and corrosion resistance. Termination is achieved via screw, rivet, or stud methods, making it versatile for various assembly processes.
This component is RoHS3 compliant and has an MSL of 1 (unlimited), indicating no moisture sensitivity restrictions. It is suitable for use in a wide range of industrial and commercial applications where quick connect/disconnect functionality is required.
The tab width is 0.250" (6.35mm).
The tab thickness is 0.032" (0.81mm).
The tab length is 0.307" (7.80mm).
No, it is non-insulated.
The contact is made of brass with a tin finish.
It can be mounted on board or chassis using screw, rivet, or stud termination.
The terminal type is angled at 45°.
