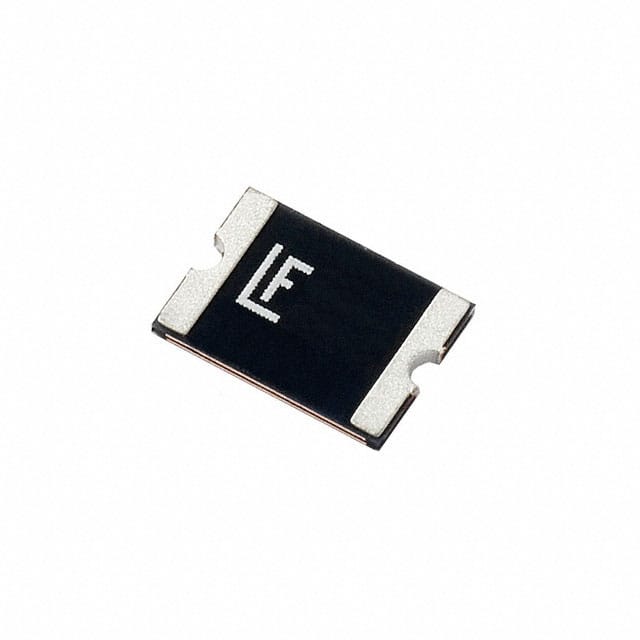

1812L200THPR Littelfuse 1812L200THPR is a polymeric PTC resettable fuse with 2A hold current, 3.5A trip current, and 8V maximum voltage in a 1812 surface mount package.
Mfr Part #:

1812L200THPR

Available from 1 distributors
Mfr Name: Littelfuse Inc.
Littelfuse Inc.
Littelfuse 1812L200THPR is a polymeric PTC resettable fuse with 2A hold current, 3.5A trip current, and 8V maximum voltage in a 1812 surface mount package.
✓ Total Stock: 39,700 pcs
$ Price Range: $0.26 - $0.60

1812L200THPR Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Smaxon Electronics ✓
Non-Authorised Inventory information
39,700 pcs
On Request
39700 pcs On Request 1 On Request On Request 15+17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1812L200THPR Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
AEC Qualified
Automotive Grade
Current
Halogen Free
Length
Mounting Type
Operating Temperature
Power Dissipation
Resistance
SVHC Present
Tape & Reel
Thickness (Max)
Time to Trip
Type
Voltage
Width
View Similar Products (0)

1812L200THPR Description

Short technical summary and product information.

The Littelfuse 1812L200THPR is a PolySwitch resettable PPTC (Polymeric Positive Temperature Coefficient) overcurrent protection device. It is designed for surface mount applications where resettable protection is desired, eliminating the need for fuse replacement after a fault.



Key electrical specifications include a hold current of 2 A, a trip current of 3.5 A, a maximum voltage of 8 V, and a maximum interrupt current of 100 A. Typical power dissipation is 0.8 W. The device features a low initial resistance of 0.02 Ω and a maximum post-trip resistance of 0.07 Ω, with a fast trip time of 2 seconds at 8 A.



The 1812L200THPR is housed in a compact 1812 (4532 Metric) concave surface mount package measuring 4.55 mm x 3.24 mm x 0.60 mm. It is RoHS compliant, lead-free, and halogen-free, making it suitable for environmentally conscious designs. The operating temperature range is -40°C to 85°C.

1812L200THPR Quick Information

Product Type: PTC Resettable Fuse
Series: 1812L
Canonical Name: Littelfuse 1812L Series PTC Resettable Fuse, 2A Hold, 3.5A Trip, 8V, 1812 Package
Subcategory: Surface Mount Polymeric PTC

1812L200THPR Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Lead Free

1812L200THPR Estimated Pricing

Qty Low High
1+ $0.60 $0.60
10+ $0.55 $0.55
50+ $0.46 $0.46
100+ $0.41 $0.41
200+ $0.38 $0.38
500+ $0.35 $0.35
1,000+ $0.32 $0.32
2,000+ $0.26 $0.26

Estimated market price range - modelled values for guidance only, not live distributor offers.

1812L200THPR Features

  • 2A hold current, 3.5A trip current.
  • Maximum voltage rating of 8V DC.
  • Low initial resistance of 0.02 ohms.
  • Fast trip time of 2 seconds at 8A.
  • RoHS compliant, lead-free and halogen-free.

1812L200THPR Applications

  • USB peripheral overcurrent protection.
  • Motherboard and plug-and-play port protection.
  • Game console port protection circuits.
  • PCI card overcurrent protection.

1812L200THPR FAQs

6 frequently asked questions generated from this part’s specifications.
What is the hold current of the 1812L200THPR?

The hold current is 2 A.

What is the trip current of this PTC fuse?

The trip current is 3.5 A.

What is the maximum voltage rating?

The maximum voltage is 8 V DC.

What is the package size of the 1812L200THPR?

It comes in a 1812 (4532 Metric) concave surface mount package.

Is the 1812L200THPR RoHS compliant?

Yes, it is RoHS compliant, lead-free, and halogen-free.

What is the operating temperature range?

The operating temperature range is -40°C to 85°C.
