| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
42,000 pcs
|
42000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,079 pcs
|
1079 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
596 pcs
|
596 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
124 pcs
|
124 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request | |
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
24 pcs
|
24 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Halogen Free | |
| Hold Current | |
| Length | |
| Max Current | |
| Max Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Package / Case | |
| Power Dissipation | |
| Resistance | |
| Resistance - Initial (R Min) | |
| Resistance - Post Trip (R1 Max) | |
| Tape & Reel | |
| Thickness (Max) | |
| Time to Trip | |
| Trip Current | |
| Type | |
| Voltage | |
| Width |

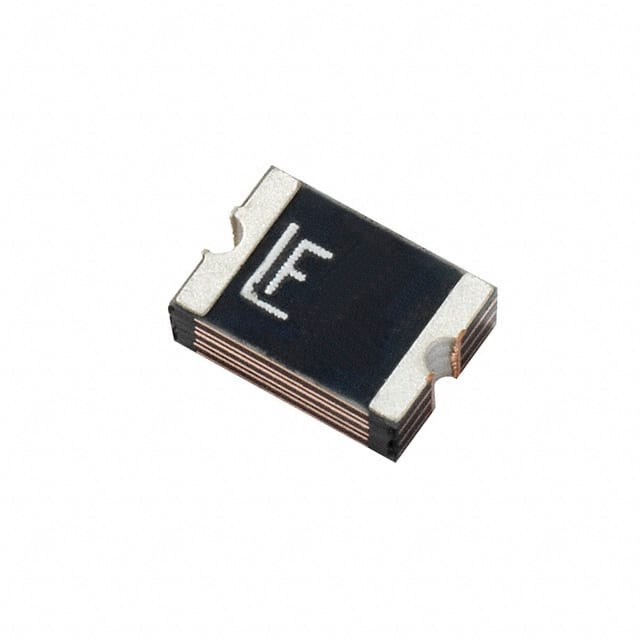

The Littelfuse 1812L110/33MR is a surface mount polymeric PTC resettable fuse from the 1812L series, designed for overcurrent protection in a wide range of electronic applications. It offers a hold current of 1.1 A and a trip current of 1.95 A, with a maximum voltage rating of 33 V and a maximum interrupt current of 20 A. The device has a typical power dissipation of 0.8 W and a fast time-to-trip of 500 ms at 8 A.
This PTC fuse features low resistance values, with an initial minimum resistance of 60 mΩ and a maximum post-trip resistance of 200 mΩ, ensuring minimal power loss during normal operation. It is housed in a standard 1812 (4532 Metric) concave package, suitable for automated surface mount assembly. The component is RoHS compliant, lead-free, and halogen-free, meeting modern environmental standards.
Typical applications include plug-and-play protection for motherboards and peripherals, USB port protection, PCI cards, and game console port protection. The device operates over a temperature range of -40°C to 85°C, making it suitable for both consumer and industrial environments.
The hold current is 1.1 A.
The trip current is 1.95 A.
The maximum voltage is 33 V.
It is a surface mount 1812 (4532 Metric) concave package.
The operating temperature range is -40°C to 85°C.
Yes, it is RoHS compliant, lead-free, and halogen-free.
