| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,082 pcs
|
2082 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| DC Resistance (DCR) | |
| Frequency | |
| Height | |
| Inductance | |
| Length | |
| Material | |
| Mounting Type | |
| Operating Temperature | |
| Q @ Freq | |
| Shielding | |
| Supplier Device Package | |
| Tolerance | |
| Width |

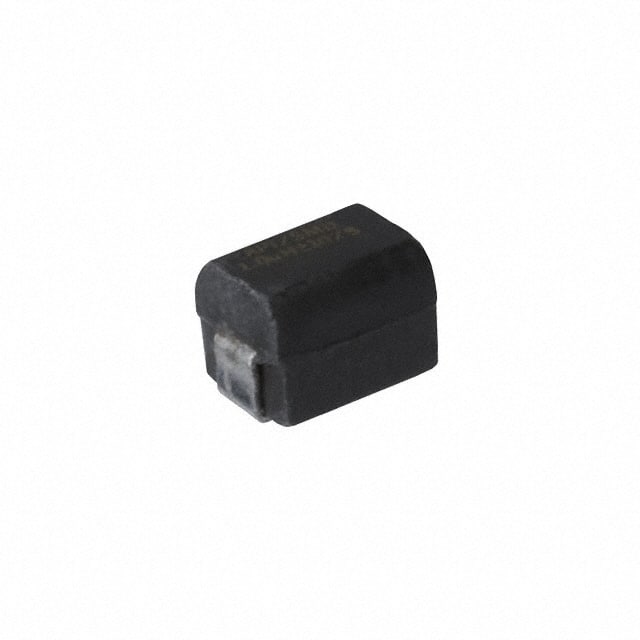

The 1812-104J is a fixed inductor manufactured by API Delevan Inc. It offers an inductance of 100 µH with a tolerance of ±5% and a self-resonant frequency of 8 MHz. The component is rated for a maximum DC current of 158 mA and has a maximum DC resistance of 8 Ohms. The Q factor is 50 at 2.5 MHz test frequency.
The inductor features an unshielded ferrite core and is designed for surface mount applications. It operates over a temperature range of -55°C to 125°C, making it suitable for a wide variety of environments. The package is the standard 1812 (4532 Metric) with dimensions of 4.50 mm x 3.20 mm and a seated height of 3.40 mm.
This component is commonly used in filtering, resonant circuits, and DC-DC converter applications where moderate inductance and current handling are required. The unshielded design may be appropriate for applications where electromagnetic interference is not a primary concern.
RoHS compliance is marked as non-compliant (contains lead), which should be verified with the manufacturer for specific regulatory requirements. The part is supplied in Tape & Reel packaging.
100 µH.
158 mA.
8 Ohm maximum.
8 MHz.
1812 (4532 Metric) surface mount package.
50 at 2.5 MHz.
-55°C to 125°C.
