| Category | |
| Manufacturer Name | |
| Actuator Type | |
| Approval Agency | |
| Breaker Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Illumination | |
| Ingress Protection | |
| Mounting Type | |
| Number of Poles | |
| Operating Temperature Range | |
| Voltage Rating | |
| Weight |

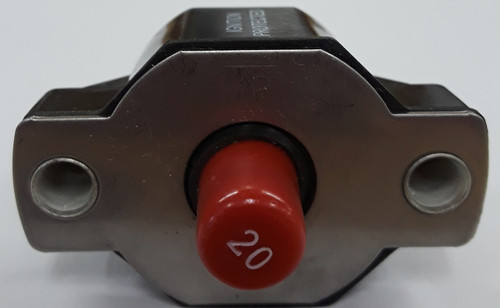

The Mechanical Products Series 18 circuit breaker is a thermal type designed for reliable circuit protection. It features a 20A current rating and supports up to 120VAC or 32VDC.
This single-pole breaker is designed for chassis mounting and utilizes a convenient push-to-reset actuator. It meets various industry standards including ABYC, SAE J553, and UL1077, ensuring robust performance.
Environmental specifications include a wide operating temperature range from -54°C to 60°C and weatherproof ingress protection conforming to SAE J1428. The breaker is also compliant with corrosion and humidity resistance standards per Mil-STD-202, and rated for significant shock and vibration resistance.
Additional features include UL 1500 ignition protection, making it suitable for marine applications. The breaker is CE marked and manufactured in the USA.
The current rating is 20A at 25°C/77°F.
It supports 120VAC and 32VDC maximum.
It uses a push-to-reset actuator.
The operating temperature range is -54°C to 60°C.
Yes, it is a trip-free design.
It meets ABYC, SAE J553, UL1077, UL 1500, and MIL-STD-202.
The interrupt capacity is 3000A at 32VDC.
