Mfr Part #:

181-M15-113R141

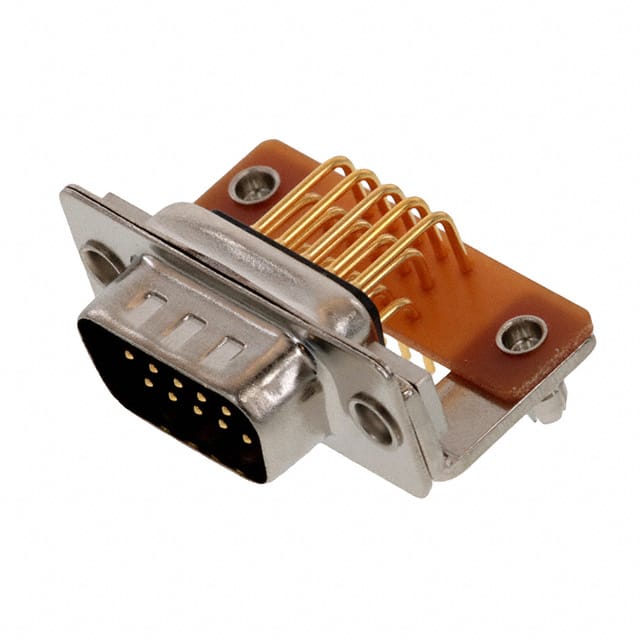

NorComp 181-M15-113R141 high density D-Sub plug with 15 male pins, right angle solder termination, and panel mount. Rated for 3A with gold flash brass contacts.

✓ Total Stock: 3 pcs

181-M15-113R141 Available from 1 distributor

✓ Authorised

✓ Non-Authorised

Distributor		Stock	Pricing	MOQ	PKG	Lead Time	Date Code	On Order Quantity	On Order Delivery
Speed Components Ltd ✓ Non-Authorised Inventory information	3 pcs On Request	3 pcs	On Request	1	On Request	On Request	1912	On Request	On Request

181-M15-113R141 Description

Short technical summary and product information.

The NorComp 181-M15-113R141 is a high density D-Sub plug from the 181-M series, featuring 15 positions arranged in 3 rows. It uses screw machined brass contacts with gold flash plating for reliable signal transmission. The connector is rated for 3A per contact, with a contact resistance of 10 mOhms maximum and insulation resistance of 5 GOhms minimum. Dielectric withstanding voltage is 1000 VAC.

The connector is designed for right angle solder termination and panel mount installation. The steel shell with nickel plating provides EMI/RFI shielding, and the shell includes grounding indents for additional retention and grounding. Board locks and a contact locator plate are integrated for secure PCB mounting. The insulator is made of PA6T or PA9T material with a UL94 V-0 flammability rating, supporting a process temperature of 260°C.

This connector uses a 0.350" backset spacing and has a shell size of 1 (DE, E) high density layout. It includes a flange feature with housing/shell (4-40) for panel mounting. The operating temperature range is -55°C to +125°C. This part is RoHS3 compliant.

181-M15-113R141 Quick Information

Product Type: D-Sub Connector

Series: 181-M

Canonical Name: NorComp Inc. 181-M15-113R141 High Density D-Sub Plug, 15 Position, Right Angle, Solder

Subcategory: High Density D-Sub Connector

181-M15-113R141 Compliance

RoHS Status: RoHS Compliant

Moisture Sensitivity Level (MSL): 1 Unlimited

REACH Status: REACH Unaffected

181-M15-113R141 Features

15-position high density D-Sub plug.
Right angle solder termination for PCB mounting.
Gold flash plated brass screw machined contacts.
Steel shell with nickel plating for EMI/RFI shielding.
Rated for 3A per contact with 10 mOhms resistance.

181-M15-113R141 Applications

Ideal for industrial automation control interfaces.
Used in medical equipment signal connections.
Suitable for telecommunications and networking gear.
Applied in test and measurement instrumentation.

181-M15-113R141 FAQs

6 frequently asked questions generated from this part’s specifications.

What is the current rating of the 181-M15-113R141?

3A per contact.

What is the mounting type for this connector?

Panel mount with through hole, right angle solder termination.

How many positions does this connector have?

15 positions arranged in 3 rows.

What is the operating temperature range?

-55°C to +125°C.

Is this connector RoHS compliant?

Yes, RoHS3 compliant.

What contact material and finish are used?

Brass contacts with gold flash plating.

Category	D-Sub Connector Assemblies
Manufacturer Name	NorComp Inc.
Backset Spacing	0.350" (8.89mm)
Connector Style	D-Sub, High Density
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Brass
Contact Resistance	10 mOhms
Contact Type	Signal
Current Rating	3 A
Current Rating (Amps)	5A
Dielectric Withstanding Voltage	1000 VAC
Features	Board Lock, Grounding Indents, Shielded
Flange Feature	Housing/Shell (4-40)
Insulation Resistance	5 GOhms
Lead Style	Solder
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Through Hole, Right Angle
Number of Positions	15
Number of Rows	3
Operating Temperature Range	-55°C to +125°C
Shell Finish	Nickel
Shell Material	Steel
Shell Material, Finish	Steel, Nickel Plated
Shell Size, Connector Layout	1 (DE, E) High Density
Termination	Solder
Termination Style	Solder
