| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5 pcs
|
5 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Backset Spacing | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| SVHC Present | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style |

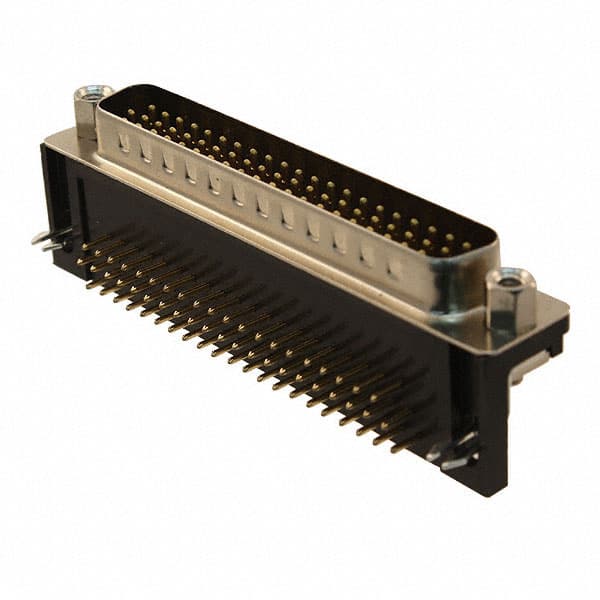

The NorComp 181-062-113R561 is a D-Sub High Density plug connector from the 183 series, designed for applications requiring a compact, high-density interconnect solution.
This plug has 62 male pin positions arranged in 3 rows, with a shell size of 4 (DC, C) High Density. The connector offers a right angle solder termination and supports panel mount with through hole installation. The steel shell is nickel plated for durability and EMI shielding. Contacts are made of brass with gold flash plating for reliable signal transmission.
The connector includes board locks, grounding indents, and shielding for improved mechanical retention and electrical performance. A mating side female screwlock (4-40) flange feature secures the mating connection. The insulator is PA9T nylon, rated UL94 V-0 for flammability. The backset spacing is 0.350" (8.89 mm).
62 positions in a 3-row D-Sub High Density layout.
Panel mount with through hole, right angle orientation.
3 amps per contact.
Steel, nickel plated.
UL94 V-0.
