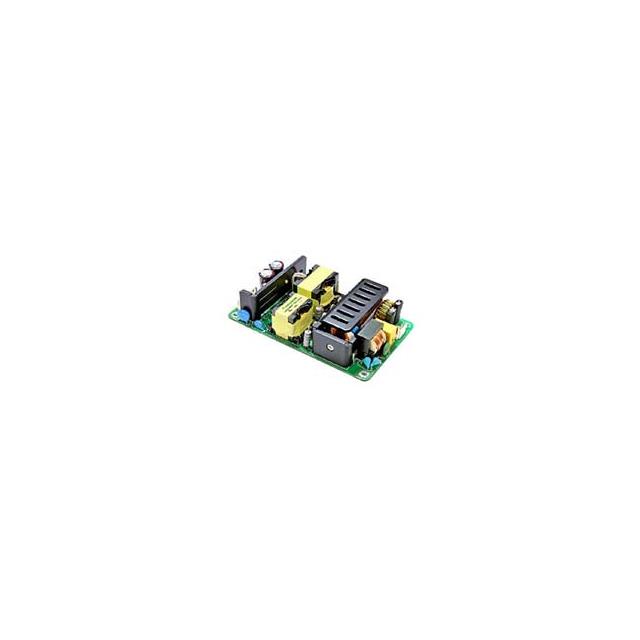

The GAPTEC Electronic 180ACMOP_15SC4 is an open frame AC DC converter designed for commercial and medical applications. It operates with a universal input voltage range of 90 to 264 VAC and provides a single 15V output.
This converter delivers up to 12A of current, with a total power output of 120W. It boasts an efficiency of 87% and features adjustable output capabilities. The operating temperature range is from 0°C to 60°C with derating.
Mechanically, the unit is housed in a module package and designed for chassis mounting. Its dimensions are 127.0mm in length, 76.2mm in width, and 30.0mm in height. The converter is approved by CE and UL, meeting standards such as 60601-1 and 60950-1.
Environmental compliance includes RoHS3 compliance, an MSL of 1, and REACH unaffected status.
The 180ACMOP_15SC4 has a single output voltage of 15V.
The maximum output current for the 180ACMOP_15SC4 is 12A.
The 180ACMOP_15SC4 has a power rating of 120W.
The operating temperature range is 0°C to 60°C, with derating.
The dimensions are 127.0mm in length, 76.2mm in width, and 30.0mm in height.
The RoHS status is RoHS3 Compliant.
The Moisture Sensitivity Level is 1 Unlimited.
