| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
25 pcs
|
25 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

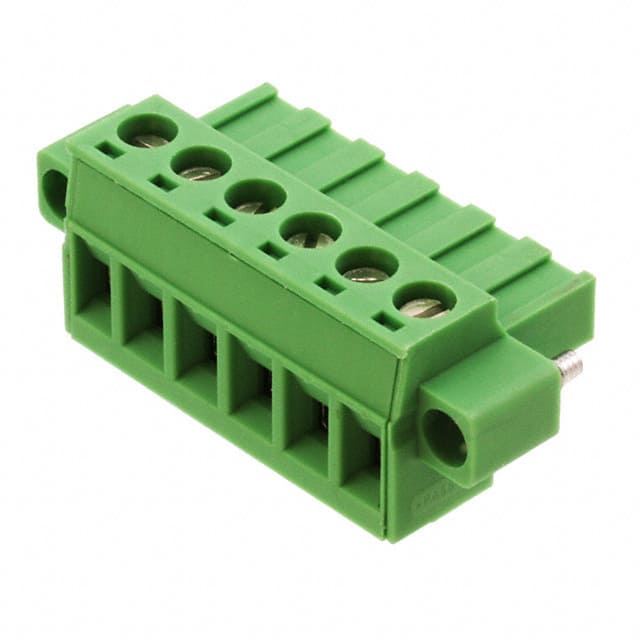

The Phoenix Contact 1805343 is a printed-circuit board connector from the MSTBT 2,5/..-STF series. It is a plug component with female sockets, featuring 6 positions arranged in a single level with a 5.08mm pitch. The connection method is screw connection with a rising cage clamp, requiring a tightening torque of 0.5-0.6 Nm and a stripping length of 7 mm. The plug wire entry is 180 degrees, and the mounting type is free hanging (in-line).
The electrical ratings include a nominal current of 12 A (with 2.5 mm² conductor cross section) and a rated voltage of 320 V (III/2) or 630 V (II/2). The insulating material is PA (polyamide) with an insulating material group I and a flammability class of UL 94 V0. The contact mating finish is tin, and the product is green in color. It is suitable for solid and stranded conductors from 0.2 to 2.5 mm² (24-12 AWG).
This terminal block plug is designed for industrial applications, providing reliable wire-to-board connections. The packing unit is 1, with a minimum order quantity of 50. The product is RoHS3 compliant and REACH unaffected, though these compliance statuses are unverified. The UL 94 V0 rating is verified from the datasheet.
6 positions.
5.08mm.
Nominal current is 12A (with 2.5mm² conductor cross section).
Rated voltage (III/2) is 320V, (II/2) is 630V, and nominal voltage is 250V.
Free hanging (in-line) mounting.
Screw connection with rising cage clamp.
