| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
37 pcs
|
37 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

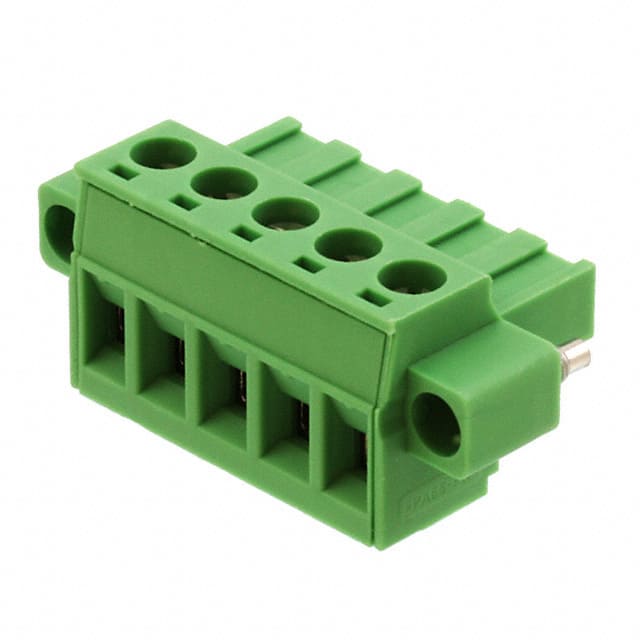

The Phoenix Contact 1805330 is a 5-position plug with female sockets from the MSTBT 2,5/..-STF series. It features a 5.08mm pitch and uses a screw - rising cage clamp termination for secure wire connections. The plug is rated for a nominal current of 12A per EN-VDE and a rated voltage of 320V (III/2) or 630V (II/2). It accepts solid or stranded conductors from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG) with a stripping length of 7 mm.
The green insulating body is made of PA (polyamide) with flammability class UL 94 V0. The contact mating finish is tin. The plug includes a mating flange feature and supports a 180° wire entry. It is designed for free hanging (in-line) mounting. The tightening torque range is 0.5 Nm to 0.6 Nm using an M3 screw thread. This plug is part of the MSTBT 2,5/..-STF series and is suitable for use in industrial control and power distribution applications.
5.08 mm.
5 positions.
Nominal current is 12 A per EN-VDE. Maximum load current is 12 A with 2.5 mm² conductor.
Rated voltage is 320 V (III/2) and 630 V (II/2) per IEC. Nominal voltage is 250 V.
Free hanging (in-line) mounting.
Solid or stranded conductors from 0.2 mm² to 2.5 mm² (24 AWG to 12 AWG).
UL 94 V0.
