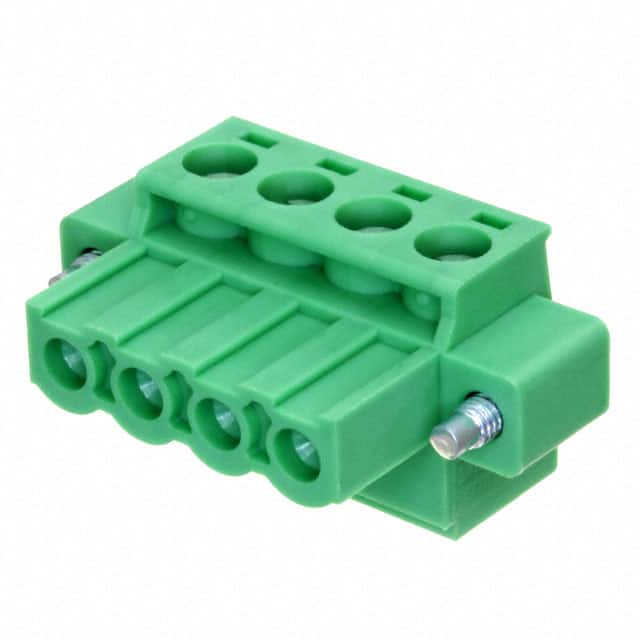

1805327 This is a 4-position terminal block plug from Phoenix Contact with a 5.08mm pitch, screw connection, and rated for 12A and 320V.
Mfr Part #:

1805327

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This is a 4-position terminal block plug from Phoenix Contact with a 5.08mm pitch, screw connection, and rated for 12A and 320V.
✓ Total Stock: 2,720 pcs
$ Price Range: $6.28

1805327 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Husky International Electronic ✓
Non-Authorised Inventory information
2,720 pcs
On Request
2720 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1805327 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1805327 Description

Short technical summary and product information.

The Phoenix Contact 1805327 is a 4-position plug component from the MSTBT 2,5/..-STF series. It features a 5.08mm pitch and uses a screw connection with rising cage clamp termination. The plug is designed for free hanging (in-line) mounting and accepts wire sizes from 0.2 to 2.5 mm² with a stripping length of 7 mm. The contact mating finish is tin, and the housing is green polyamide (PA) with a flammability class of V0 according to UL 94.



Electrical ratings include a nominal current of 12 A and rated voltages of 320 V (III/2) and 630 V (II/2). The rated surge voltage is 4 kV across multiple categories. The plug is RoHS compliant and REACH unaffected, with an MSL of 1 (unlimited). The mating flange feature ensures secure connection.



This plug is suitable for industrial control applications requiring reliable screw termination. The insulating material group I and high creepage distances support use in demanding environments. The compact 4-position design saves space on the PCB.

1805327 Quick Information

Product Type: Terminal Block Plug
Series: MSTBT 2,5/..-STF
Canonical Name: MSTBT 2,5/ 4-STF-5,08
Subcategory: Headers, Plugs and Sockets

1805327 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1805327 Estimated Pricing

Qty Low High
1+ $6.28 $6.28

Estimated market price range - modelled values for guidance only, not live distributor offers.

1805327 Features

  • 4 positions with 5.08mm pitch.
  • Screw connection with rising cage clamp.
  • Rated for 12A and 320V.
  • Free hanging (in-line) mounting.
  • Green polyamide housing with V0 rating.

1805327 Applications

  • Industrial control panel wiring connections
  • Building automation and lighting systems
  • Power distribution in machinery
  • Instrumentation and measurement equipment
  • Factory automation signal and power

1805327 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block plug have?

4 positions.

What is the pitch of the Phoenix Contact 1805327?

5.08 mm.

What is the current rating of this plug?

12 A (nominal) as per datasheet.

What is the voltage rating?

320 V for category III/2 and 630 V for category II/2.

What mounting type does this plug use?

Free hanging (in-line) mounting.

What wire size is accepted?

0.2 to 2.5 mm².

What is the tightening torque for the screw?

0.5 to 0.6 Nm.
