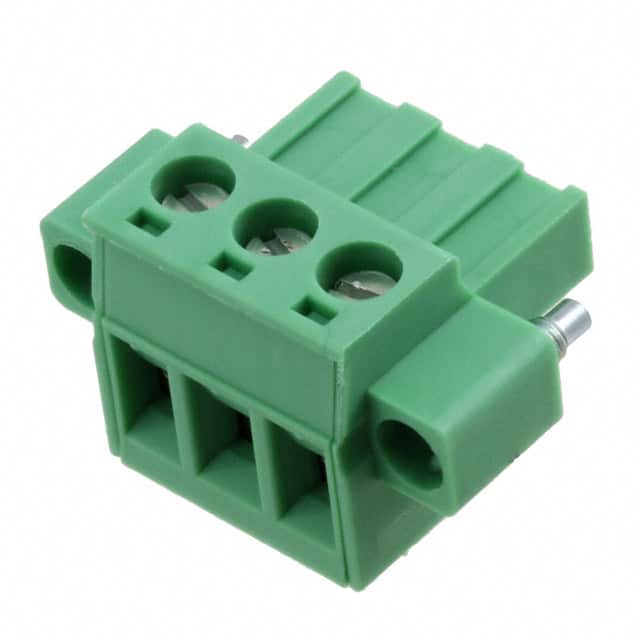

1805314 3-position terminal block plug from Phoenix Contact with 5.08mm pitch, screw connection, and 12A current rating. Free hanging (in-line) mounting with green insulating body.
Mfr Part #:

1805314

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
3-position terminal block plug from Phoenix Contact with 5.08mm pitch, screw connection, and 12A current rating. Free hanging (in-line) mounting with green insulating body.
✓ Total Stock: 25 pcs

1805314 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Hybrid Electronics ✓
Non-Authorised Inventory information
25 pcs
On Request
25 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1805314 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1805314 Description

Short technical summary and product information.

The Phoenix Contact 1805314 is a 3-position plug component from the MSTBT 2,5/..-STF series. It features a 5.08mm pitch and uses a screw connection with rising cage clamp termination. The plug accepts wire gauges from 0.2 to 2.5 mm² (24-12 AWG) and has a stripping length of 7mm. It is rated for 12A nominal current and 320V rated voltage (III/2) per EN-VDE standards. The insulating material is PA with UL 94 V0 flammability rating. The plug is designed for free hanging (in-line) mounting with 180° wire entry. It includes a mating flange for secure connection. Contact mating finish is tin. The product is RoHS3 compliant and REACH unaffected (unverified).

1805314 Quick Information

Product Type: Terminal Block Plug
Series: MSTBT 2,5/..-STF
Canonical Name: Phoenix Contact MSTBT 2,5/ 3-STF-5,08 - 3 Position 5.08mm Plug, Female Sockets
Subcategory: Headers, Plugs and Sockets

1805314 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1805314 Features

  • 3 positions with 5.08mm pitch.
  • Screw connection with rising cage clamp.
  • Rated for 12A and 320V.
  • Free hanging (in-line) mounting.
  • UL 94 V0 flammability rated.

1805314 Applications

  • Used in industrial control panels.
  • Ideal for power distribution blocks.
  • Suitable for sensor and actuator wiring.
  • Common in building automation systems.

1805314 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1805314 have?

3 positions.

What is the pitch of this terminal block?

5.08 mm.

What is the current rating?

12 A nominal current.

What is the voltage rating?

320 V rated voltage (III/2) and 630 V (II/2).

What is the mounting type?

Free hanging (in-line).

What wire gauge does it accept?

0.2-2.5 mm² (24-12 AWG).

What is the termination style?

Screw - rising cage clamp.
