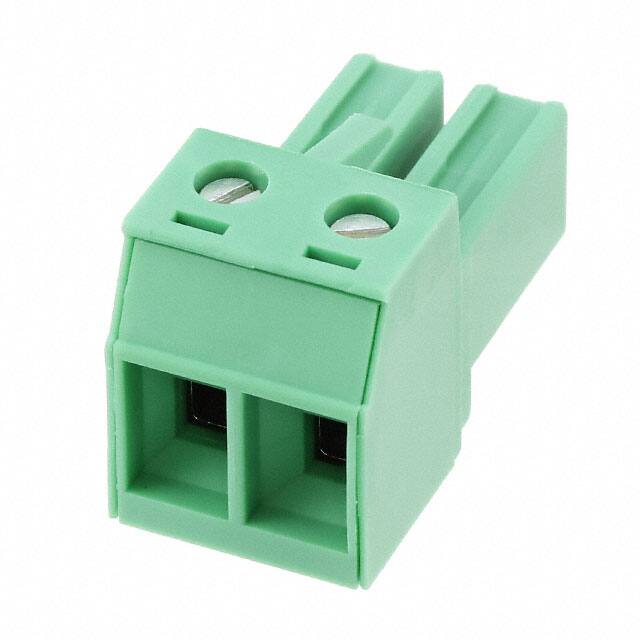

1804904 Phoenix Contact 1804904 is a 2-position terminal block plug with 7.62mm pitch, female sockets, free hanging mounting, and screw rising cage clamp termination.
Mfr Part #:

1804904

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1804904 is a 2-position terminal block plug with 7.62mm pitch, female sockets, free hanging mounting, and screw rising cage clamp termination.
✓ Total Stock: 15 pcs

1804904 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
15 pcs
On Request
15 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1804904 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Storage Temperature
Termination Style
Type
Voltage
Voltage Rating
Wire Gauge or Range
View Similar Products (0)

1804904 Description

Short technical summary and product information.

The Phoenix Contact 1804904 is a 2-position terminal block plug designed for reliable wire-to-board connections. It features female sockets and a 7.62mm pitch, making it suitable for higher voltage applications.



This plug uses a screw rising cage clamp termination, accommodating wire gauges from 0.2 to 4 mm². The free hanging (in-line) mounting style allows flexible installation in various wiring harnesses. The housing is green and includes retention latches on the non-wire side for secure mating.



Electrical ratings are 600V and 5A, with tin-plated contacts ensuring good conductivity. The 180° wire entry simplifies wiring in tight spaces. This connector is commonly used in industrial control panels, power distribution, and automation systems.

1804904 Quick Information

Product Type: Terminal Block Plug
Series: PC
Canonical Name: Phoenix Contact 1804904 - 2 Position 7.62mm Pitch Plug, Female Sockets, Free Hanging, Screw Terminals
Subcategory: Headers, Plugs and Sockets

1804904 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1804904 Features

  • 2-position female socket plug connector.
  • 7.62mm pitch for high voltage applications.
  • Screw rising cage clamp termination.
  • Free hanging (in-line) mounting style.
  • Rated for 600V and 5A operation.

1804904 Applications

  • Used in industrial control panel wiring.
  • Ideal for power distribution connections.
  • Suitable for field wiring in automation.
  • Common in process control systems.

1804904 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block plug have?

It has 2 positions.

What is the pitch of this connector?

The pitch is 7.62mm (0.300").

What is the voltage rating?

The voltage rating is 600V.

What is the current rating?

The current rating is 5A.

What mounting type does this plug use?

It uses free hanging (in-line) mounting.

What wire gauge range is supported?

It supports wire gauges from 0.2 to 4mm².

What termination style does it feature?

Screw - rising cage clamp termination.
