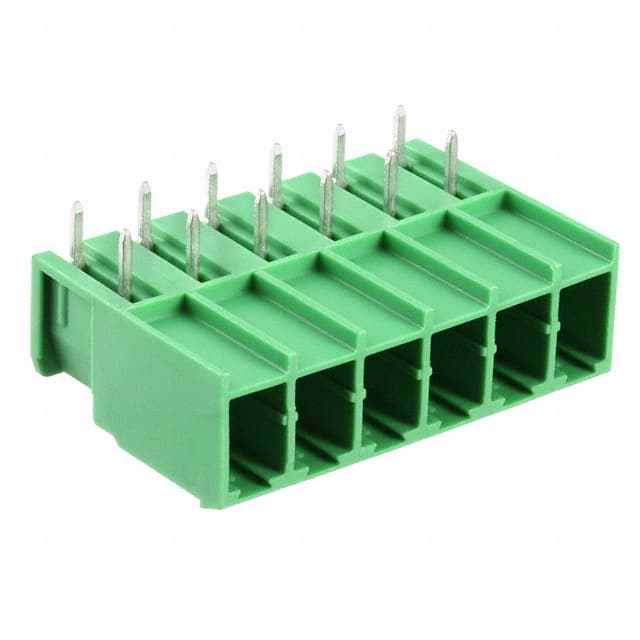

The Phoenix Contact 1804836 is a PC 4/ 6-G-7,62 series base strip header designed for use with PC 4 plug connectors. This shrouded (4 side) header provides a robust, vibration-resistant connection suitable for industrial control and power distribution applications.
Key specifications include 6 positions in a single level with a 7.62 mm pitch, right angle orientation for board edge mounting, and through hole solder termination. The header is rated for a nominal current of 20 A and a rated voltage of 630 V (III/2), with a rated surge voltage of 6 kV. It also carries UL ratings of 300 V for both Use Group B and C.
The insulating material is polyamide (PA) with a flammability rating of UL 94 V0, and the contact mating finish is tin. Pin dimensions are 1 x 0.8 mm, requiring a 1.3 mm hole diameter. The overall length is 29 mm with a dimension a of 38.1 mm. The connection standard is EN-VDE.
This header is part of the PC 4 range and is designed for professional EMC shield connections when used with the PCB-SHIELD accessory (Order No. 1827570). Optional CP-PC RD keying profiles prevent mismatching.
The pitch is 7.62 mm.
It has 6 positions in a single level.
The nominal current rating is 20 A.
The rated voltage (III/2) is 630 V, and the nominal voltage is 400 V.
It uses through hole mounting (solder termination).
