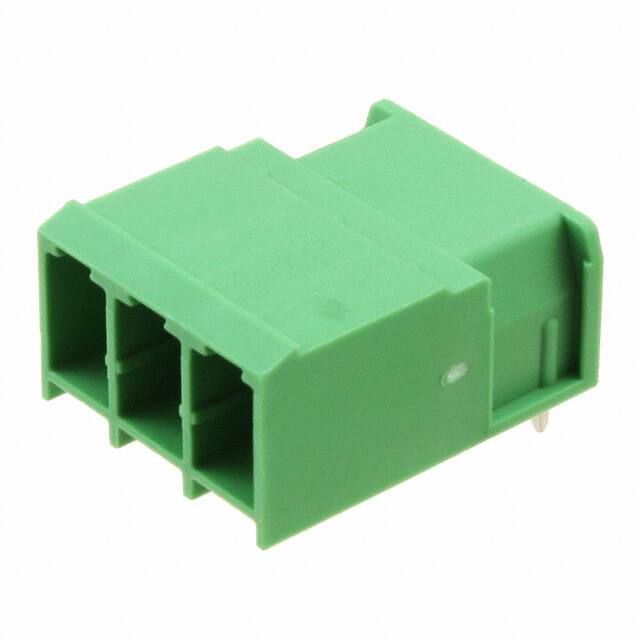

1804807 Phoenix Contact 1804807 is a 3-position terminal block header with 7.62mm pitch, right angle orientation, through hole mounting, and solder termination. Rated for 300V and 20A.
Mfr Part #:

1804807

Available from 3 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1804807 is a 3-position terminal block header with 7.62mm pitch, right angle orientation, through hole mounting, and solder termination. Rated for 300V and 20A.
✓ Total Stock: 245 pcs

1804807 Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
RAD ✓
Non-Authorised Inventory information
120 pcs
On Request
120 pcs On Request 1 On Request On Request On Request On Request On Request
Partservice ✓
Non-Authorised Inventory information
5 pcs
On Request
5 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1804807 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1804807 Description

Short technical summary and product information.

The Phoenix Contact 1804807 is a 3-position terminal block header designed for use in industrial control and power distribution applications. It features a shrouded (4 side) design with male pins and a right angle orientation, allowing for compact board-to-wire connections. The header has a 7.62mm pitch and is rated for 300V and 20A, making it suitable for moderate power requirements. The through hole mounting with solder termination ensures reliable mechanical and electrical connections. The green color and tin contact mating finish provide corrosion resistance. This component is RoHS3 compliant and has an MSL of 1 (unlimited). It is commonly used in PLC, I/O modules, and power supply units.

1804807 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1804807 - Terminal Block Header, 3 Position, 7.62mm Pitch, Through Hole, Right Angle
Subcategory: Terminal Block Headers

1804807 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected
Lead Free: Yes

1804807 Features

  • 3 positions with 7.62mm pitch.
  • Right angle orientation for compact layouts.
  • Rated for 300V and 20A.
  • Through hole solder termination.
  • Shrouded header with tin plated contacts.

1804807 Applications

  • Used in industrial control panels.
  • Suitable for power supply connections.
  • Ideal for PLC and I/O modules.
  • Common in terminal block interfaces.

1804807 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1804807 have?

3 positions.

What is the pitch of the 1804807?

7.62mm (0.300 inches).

What is the current rating of the 1804807?

20 A.

What is the voltage rating of the 1804807?

300 V.

What is the mounting type of the 1804807?

Through hole.

What is the header orientation of the 1804807?

90°, right angle.

What color is the 1804807?

Green.
