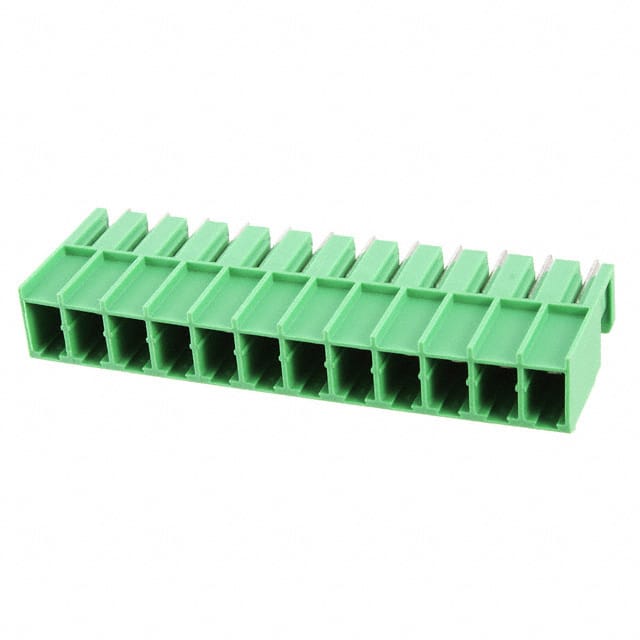

1804784 12-position shrouded header with 7.62mm pitch, rated 20A and 300V. Vertical through-hole mounting with tin-plated contacts.
Mfr Part #:

1804784

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
12-position shrouded header with 7.62mm pitch, rated 20A and 300V. Vertical through-hole mounting with tin-plated contacts.
✓ Total Stock: 14 pcs

1804784 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
14 pcs
On Request
14 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1804784 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Hole Diameter
Lead Spacing
Lead Style
Length
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1804784 Description

Short technical summary and product information.

The Phoenix Contact 1804784 is a 12-position shrouded header from the PCV 4 series. It features a 7.62mm pitch and is designed for through-hole soldering. The header has a green PA insulator with UL 94 V0 flammability rating. Electrical ratings include 20A nominal current and 300V (UL) or 630V (IEC) rated voltage. It supports surge voltage up to 6kV. The contact mating finish is tin. Typical applications include industrial control panels and power distribution.

1804784 Quick Information

Product Type: Terminal Block Header
Series: PCV 4/..-G
Canonical Name: Phoenix Contact PCV 4/12-G-7,62 Header, Male Pins, Shrouded (4 Side)
Subcategory: Headers

1804784 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1804784 Features

  • 12 positions with 7.62mm pitch.
  • Rated for 20A and 300V.
  • Vertical through-hole mounting.
  • Tin-plated contacts.
  • Shrouded header design for protection.

1804784 Applications

  • Used in industrial control panels.
  • Suitable for power distribution.
  • Ideal for PCB-to-wire connections.

1804784 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does this header have?

This header has 12 positions.

What is the pitch of this header?

The pitch is 7.62 mm.

What is the current rating?

The nominal current rating is 20 A.

What is the voltage rating?

Rated voltage is 300 V for UL use and 630 V for IEC use.

What is the mounting style?

Through-hole mounting with vertical orientation.

What is the flammability rating of the insulator?

The insulator has a UL 94 V0 flammability rating.
