| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80,000 pcs
|
80000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
36,000 pcs
|
36000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Gender | |
| Halogen Free | |
| Insulation | |
| Lead Style | |
| Mounting Type | |
| Tab Length | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Wire Gauge |

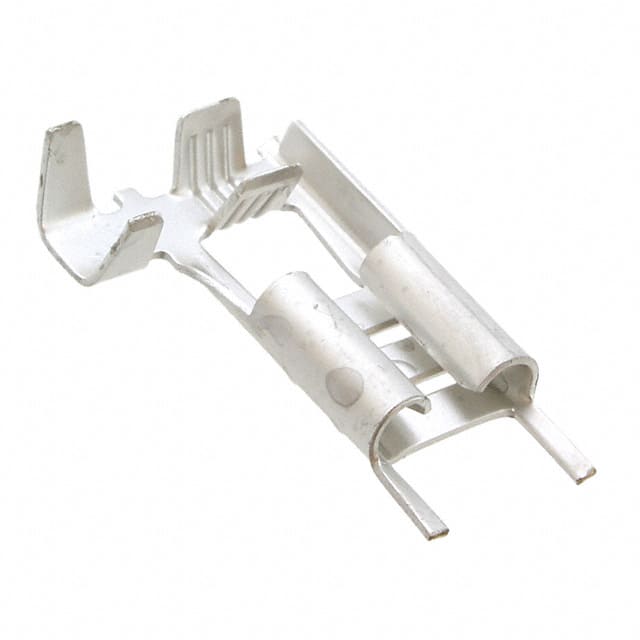

The TE Connectivity 180464-2 is a non-insulated female quick disconnect terminal with a right-angle flag design. It accepts 13.5-17 AWG wire and uses crimp termination. The tab measures 0.250" (6.35mm) wide, 0.299" (7.60mm) long, and 0.032" (0.81mm) thick. The contact is made of brass with a tin finish. This terminal is suitable for applications requiring a reliable quick-connect interface in confined spaces due to its flag configuration. It is RoHS3 compliant and has an MSL of 1 (unlimited).
Free hanging (in-line), right angle.
13.5-17 AWG.
0.250" (6.35mm).
Crimp.
No, it is non-insulated.
Brass with tin plating.
Yes, it is listed as RoHS3 compliant (unverified).
