| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
90,000 pcs
|
90000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Features | |
| Gender | |
| Halogen Free | |
| Insulation | |
| Lead Style | |
| Length | |
| Mounting Type | |
| SVHC Present | |
| Tab Thickness | |
| Tab Width | |
| Terminal Type | |
| Termination | |
| Termination Style | |
| Wire Gauge |

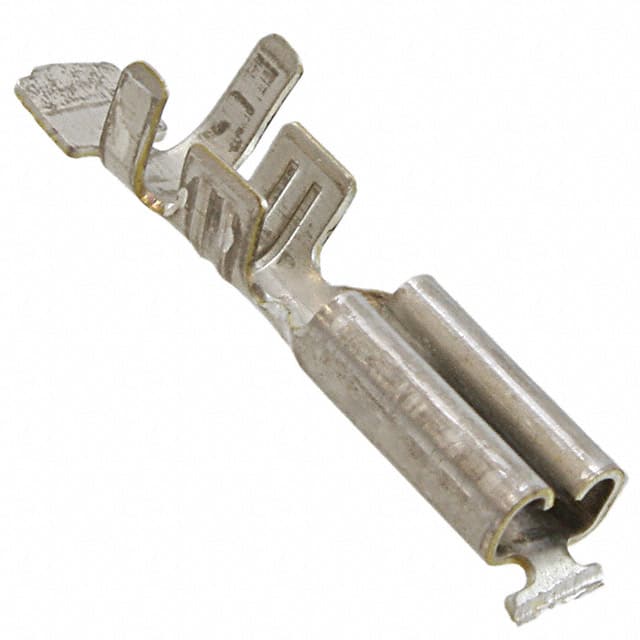

The TE Connectivity 180423-2 is a non-insulated female quick disconnect terminal designed for 15-20 AWG wire. It has a tab width of 0.110" (2.79mm) and tab thickness of 0.032" (0.81mm). The terminal is made of brass with a tin finish and uses a serrated crimp for secure wire termination. The free hanging (in-line) mounting type allows flexible placement in wiring harnesses. The overall length is 13.41mm (0.528").
The serrated crimp provides a reliable mechanical and electrical connection. As a non-insulated terminal, additional insulation may be required depending on the application. The tin finish offers good corrosion resistance.
This terminal is suitable for quick disconnect applications in automotive, industrial, and consumer electronics where a 0.110" tab is required. It is RoHS3 compliant and REACH unaffected (unverified).
Free Hanging (In-Line).
15-20 AWG.
Tab width: 0.110" (2.79mm), tab thickness: 0.032" (0.81mm).
Crimp.
Brass with tin finish.
No, it is non-insulated.
Female.
