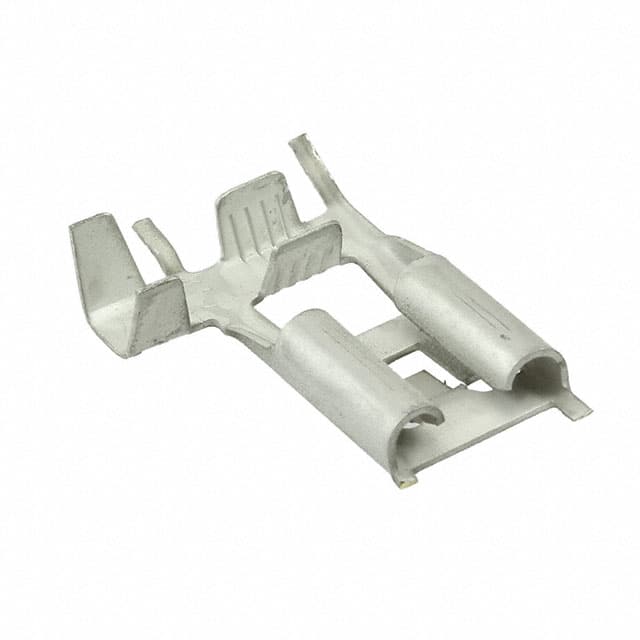

The TE Connectivity 180373-2 is a non-insulated female quick disconnect terminal designed for reliable wire-to-tab connections. It features a 0.312" (7.92mm) tab width, 0.032" (0.81mm) tab thickness, and 0.339" (8.60mm) tab length, accommodating 13-17 AWG wire gauge. The terminal is constructed from tin-plated brass, offering good conductivity and corrosion resistance.
The 90° flag (angled) design allows for right-angle mounting, making it suitable for space-constrained applications where a straight terminal would not fit. The crimp termination ensures a secure mechanical and electrical connection. This terminal is free hanging (in-line) and does not require insulation, simplifying installation in applications where insulation is not needed.
Typical applications include automotive wiring harnesses, appliance power connections, and industrial control systems. The terminal's robust construction and standard tab size make it a versatile choice for quick disconnect requirements.
The tab width is 0.312" (7.92mm).
It accepts 13-17 AWG wire.
No, it is non-insulated.
The contact is made of brass with a tin finish.
Crimp termination.
Free hanging (in-line), right angle.
Female.
