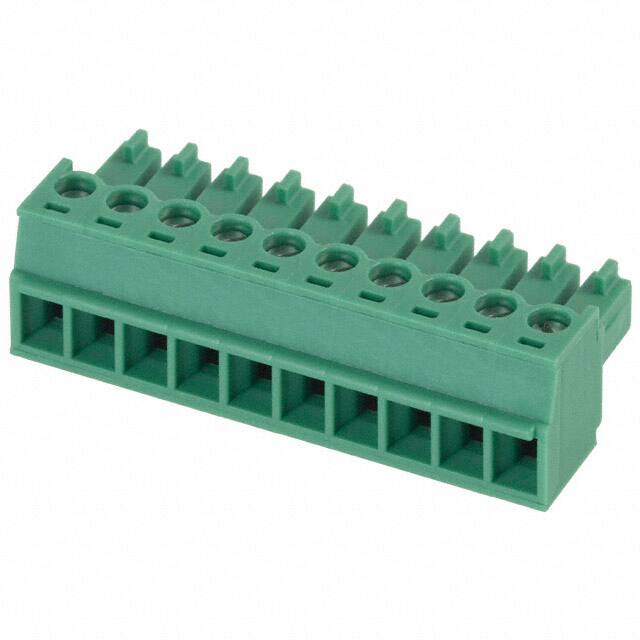

1803659 Phoenix Contact 1803659 is a 10-position terminal block plug with female sockets, 3.81mm pitch, rated 8A at 300V. Free hanging mounting with screw rising cage clamp termination.
Mfr Part #:

1803659

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1803659 is a 10-position terminal block plug with female sockets, 3.81mm pitch, rated 8A at 300V. Free hanging mounting with screw rising cage clamp termination.
✓ Total Stock: 259 pcs

1803659 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
259 pcs
On Request
259 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1803659 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Contact Plating
Current
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1803659 Description

Short technical summary and product information.

The Phoenix Contact 1803659 is a 10-position terminal block plug designed for reliable wire-to-board connections. It features a 3.81mm pitch and accepts wire gauges from 0.14 to 1.5mm². The plug uses a screw rising cage clamp termination style for secure and durable wire retention.



This single-level plug has a 180° wire entry angle and is rated for 8A at 300V. The housing is green and contacts are finished with tin for good conductivity and corrosion resistance. The free hanging (in-line) mounting type offers flexibility for various wiring harness and panel applications.



Ideal for industrial control systems, instrumentation, and building automation, this plug mates with corresponding headers to create a complete terminal block interface. The female socket contacts ensure a reliable connection in high-vibration environments.

1803659 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1803659 - Terminal Block Plug, Female Sockets, 10 Positions, 3.81mm Pitch
Subcategory: Headers, Plugs and Sockets

1803659 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1803659 Features

  • 10-position single-level plug connector.
  • 3.81mm pitch for compact designs.
  • Screw rising cage clamp termination.
  • Rated for 300V and 8A.
  • Free hanging (in-line) mounting style.

1803659 Applications

  • Used in industrial control panel wiring.
  • Ideal for building automation systems.
  • Suitable for sensor and actuator connections.
  • Common in power distribution blocks.
  • For wire-to-board connections in machinery.

1803659 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1803659 have?

It has 10 positions in a single level.

What is the pitch of this terminal block plug?

The pitch is 3.81mm (0.150 inches).

What is the current rating of the 1803659?

It is rated for 8A.

What is the voltage rating?

The voltage rating is 300V.

What type of mounting does the 1803659 use?

It uses free hanging (in-line) mounting.
