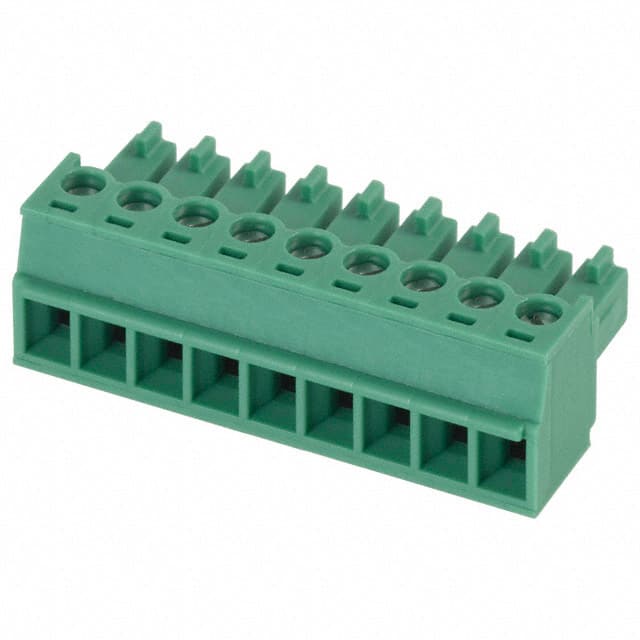

1803646 Terminal block plug with female sockets, 9 positions, 3.81mm pitch, rated 8 A at 300 V. Free hanging mounting with screw cage clamp termination.
Mfr Part #:

1803646

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Terminal block plug with female sockets, 9 positions, 3.81mm pitch, rated 8 A at 300 V. Free hanging mounting with screw cage clamp termination.
✓ Total Stock: 354 pcs

1803646 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
257 pcs
On Request
257 pcs On Request 1 On Request On Request On Request On Request On Request
Husky International Electronic ✓
Non-Authorised Inventory information
97 pcs
On Request
97 pcs On Request 1 On Request On Request N/A On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1803646 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1803646 Description

Short technical summary and product information.

The Phoenix Contact 1803646 is a 9-position terminal block plug featuring female sockets and a straight (180°) wire entry. The pitch is 3.81mm, allowing compact wiring in dense control panels and industrial equipment.



This plug is rated for 8 A and 300 V, with a wire range of 0.14 to 1.5 mm². The termination style is screw - rising cage clamp, providing a reliable and secure connection for solid or stranded conductors. The contact mating finish is tin for good conductivity and corrosion resistance.



The housing is green and the component is designed for free hanging (in-line) mounting, enabling flexible cable assembly without a fixed panel mount. It uses one level with all 9 positions on a single row.

1803646 Quick Information

Product Type: Terminal Block Plug
Series: MC
Canonical Name: Terminal Block Plug, Female Sockets, 9 Positions, 3.81mm Pitch, Free Hanging, Screw Connection
Subcategory: Plug and Socket Connectors

1803646 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1803646 Features

  • 9-position female socket terminal block plug.
  • 3.81mm pitch for compact wiring density.
  • 8 A current and 300 V voltage rating.
  • Screw rising cage clamp termination style.
  • Free hanging in-line mounting with 180° entry.

1803646 Applications

  • Used in industrial control panel wiring.
  • Suitable for sensor and actuator connections.
  • Ideal for building automation systems.
  • Applicable in power distribution blocks.

1803646 FAQs

4 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block plug have?

The plug has 9 positions, all on a single level.

What is the pitch of the 1803646?

The pitch is 3.81mm (0.150 inches).

What is the current and voltage rating?

The current rating is 8 A and the voltage rating is 300 V.

What is the mounting type for this plug?

The mounting type is free hanging (in-line), not PCB mount.
