| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
539 pcs
|
539 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
61 pcs
|
61 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

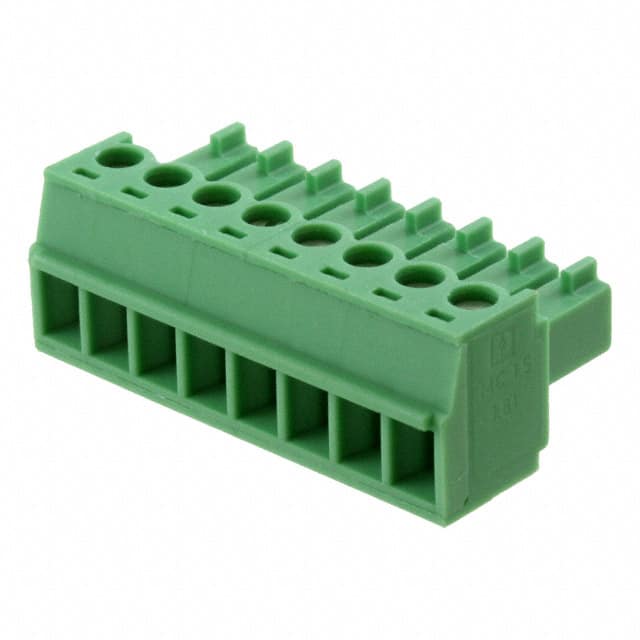

The Phoenix Contact 1803633 is a terminal block plug with 8 female socket positions arranged in a single level. It features a 3.81mm (0.150 inch) pitch and is designed for free hanging (in-line) mounting, making it suitable for direct wire-to-board or wire-to-wire connections.
The plug uses a screw-rising cage clamp termination style, accepting wire gauges from 0.14 to 1.5 mm². Electrical ratings are 300V and 8A per position. The contact mating finish is tin. The plug body is green in color.
This component is part of Phoenix Contact's terminal block family and is categorized under Headers, Plugs and Sockets. It is commonly used in industrial control, automation, and power distribution systems where reliable, removable wire connections are required.
The plug has 8 positions, all on a single level.
The pitch is 3.81 mm (0.150 inches).
The plug is rated for 300V and 8A.
It is designed for free hanging (in-line) mounting.
It uses a screw-rising cage clamp termination.
The contact mating finish is tin.
It accepts wire gauge range 0.14 to 1.5 mm².
