| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
140 pcs
|
140 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
15 pcs
|
15 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
6 pcs
|
6 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

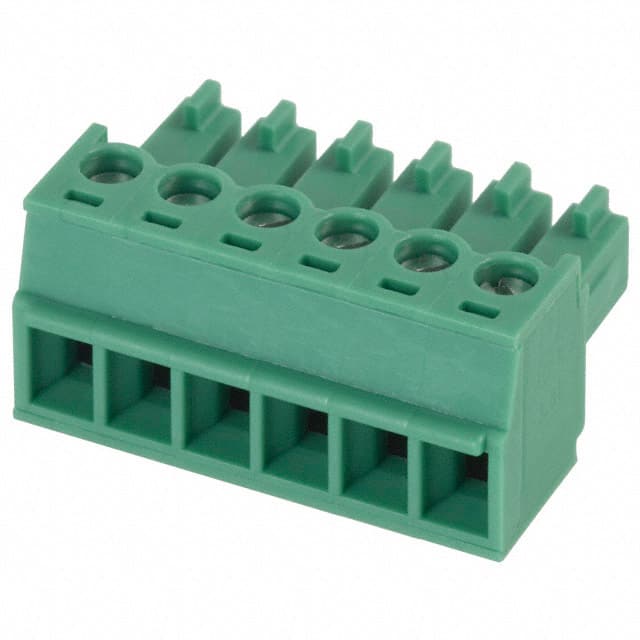

This terminal block plug, part number 1803617 from Phoenix Contact, is a 6-position female socket connector with a 3.81mm pitch. It is designed for free-hanging (in-line) mounting and features a screw termination with rising cage clamp for secure wire connections. The plug accepts wire gauges from 0.14 to 1.5 mm² and is rated for 300V and 8A. The green housing and tin-plated contact mating finish provide reliable performance. The plug wire entry is at 180°, allowing straight wire insertion. This component is suitable for use in industrial control systems, power distribution, and other applications requiring reliable terminal block connections.
6 positions.
3.81mm.
8A.
300V.
Free Hanging (In-Line).
Screw - Rising Cage Clamp.
0.14-1.5mm².
