| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
239 pcs
|
239 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
87 pcs
|
87 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
74 pcs
|
74 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
59 pcs
|
59 pcs | On Request | 1 | On Request | On Request | 1438 | On Request | On Request | |
|
4 pcs
|
4 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

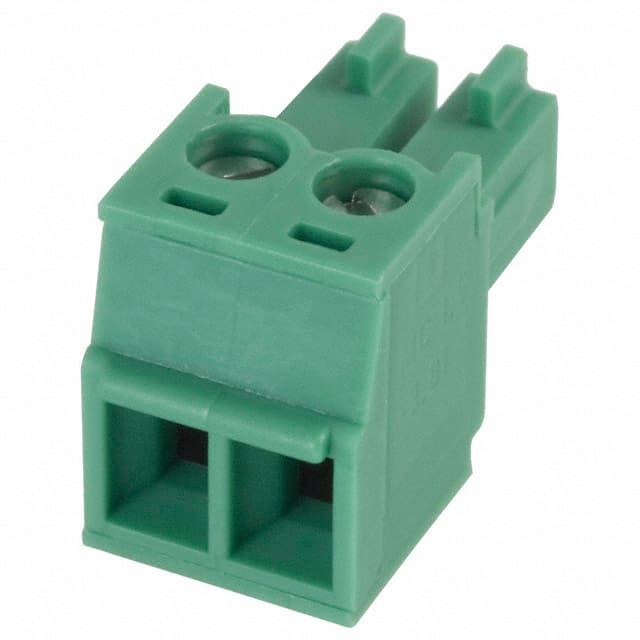

The Phoenix Contact 1803578, part of the MC 1,5 series, is a 2-position terminal block plug with a 3.81mm pitch. It uses a screw termination with rising cage clamp for secure wire connections. The plug accepts solid or stranded wires from 0.14 to 1.5 mm² (28-16 AWG).
This plug is rated for 8A current and 300V voltage (UL) or 160V (IEC). It is designed for free hanging (in-line) mounting with a 180° wire entry direction, making it suitable for applications where space is limited. The housing is green with tin-plated contact mating surfaces.
Typical applications include industrial control panels, power distribution, and building automation. The plug is part of a modular system that allows flexible configuration with matching headers and other accessories.
It has 2 positions.
The pitch is 3.81mm.
The current rating is 8A.
The voltage rating is 300V (UL) and 160V (IEC).
Free hanging (in-line) mounting.
Supports 28-16 AWG (0.14-1.5 mm² solid or stranded).
Screw - rising cage clamp termination.
