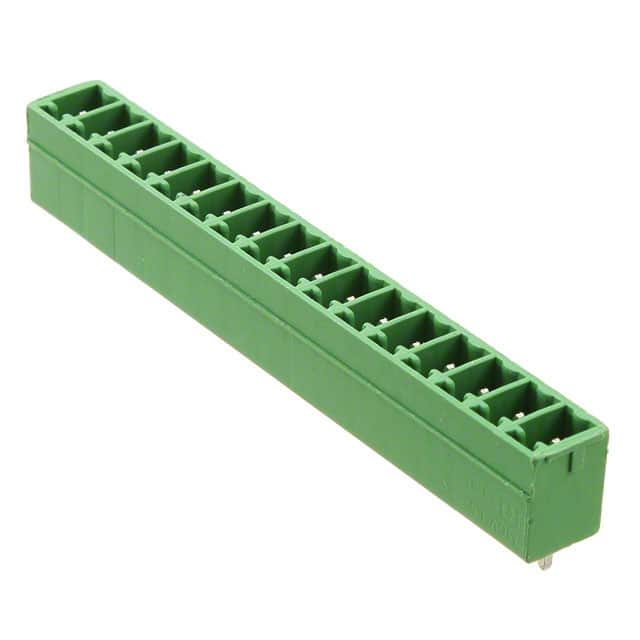

1803565 This is a 16-position terminal block header with 3.81mm pitch, vertical orientation, and through-hole mounting. It features a shrouded design with tin-plated male pins.
Mfr Part #:

1803565

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
This is a 16-position terminal block header with 3.81mm pitch, vertical orientation, and through-hole mounting. It features a shrouded design with tin-plated male pins.
✓ Total Stock: 21 pcs

1803565 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
21 pcs
On Request
21 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1803565 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1803565 Description

Short technical summary and product information.

The Phoenix Contact 1803565 is a 16-position terminal block header with a 3.81mm pitch, designed for vertical through-hole mounting. It is a shrouded (4 side) header with male pins, providing mechanical protection and polarization for secure wire connections. The header has a single level with 16 positions per level, and is terminated via solder connections. It is rated for 300V and 8A, making it suitable for power and signal distribution in industrial control systems, PLCs, and automation equipment. The green insulation and tin-plated contact finish offer reliable performance and corrosion resistance. The component is RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). The through-hole package ensures a robust mechanical connection to the PCB.

1803565 Quick Information

Product Type: Terminal Block Header
Canonical Name: 16 Position Terminal Block Header, 3.81mm, Vertical, Through Hole, Shrouded (4 Side)
Subcategory: Headers, Plugs and Sockets

1803565 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1803565 Features

  • 16 positions with 3.81mm pitch.
  • Vertical through-hole mounting.
  • Shrouded (4 side) header design.
  • Rated for 300V and 8A.
  • Tin-plated male pins.

1803565 Applications

  • Used in industrial control panels.
  • Suitable for PLC and I/O modules.
  • Ideal for power distribution blocks.
  • For signal routing in automation systems.

1803565 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does this terminal block header have?

16 positions.

What is the pitch of this header?

3.81mm (0.150 inches).

What is the current rating?

8A.

What is the voltage rating?

300V.

What is the mounting type?

Through hole.

What is the contact finish?

Tin.

Is this component RoHS compliant?

Yes, RoHS3 compliant (unverified).
