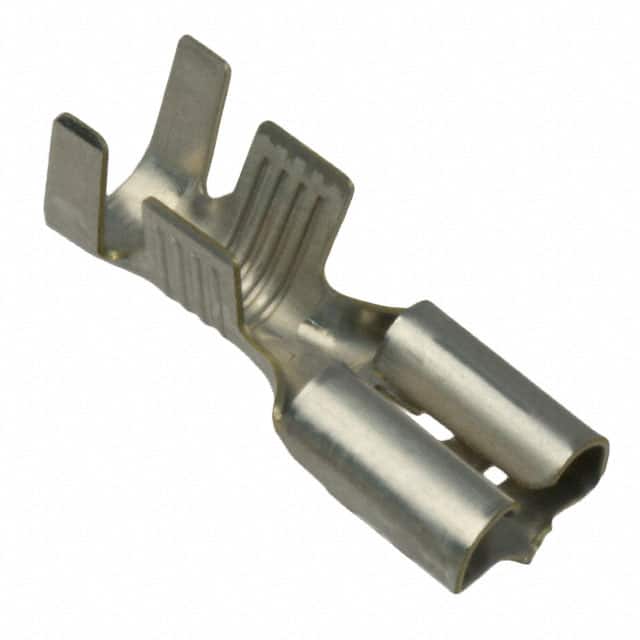

180351-2 TE Connectivity 180351-2 is a non-insulated female quick disconnect terminal for 10-12 AWG wire, featuring a 0.250" (6.35mm) tab, crimp termination, and tin-plated brass contact.
Mfr Part #:

180351-2

Available from 1 distributors
Mfr Name: TE Connectivity
TE Connectivity
TE Connectivity 180351-2 is a non-insulated female quick disconnect terminal for 10-12 AWG wire, featuring a 0.250" (6.35mm) tab, crimp termination, and tin-plated brass contact.
✓ Total Stock: 72,000 pcs

180351-2 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
AA2DE ✓
Non-Authorised Inventory information
72,000 pcs
On Request
72000 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

180351-2 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Contact Finish
Contact Material
Gender
Insulation
Lead Style
Length
Mounting Type
Tab Length
Tab Thickness
Tab Width
Terminal Type
Termination
Wire Gauge
View Similar Products (0)

180351-2 Description

Short technical summary and product information.

The TE Connectivity 180351-2 is a standard female quick disconnect terminal designed for 10-12 AWG wire. It features a tab width of 0.250" (6.35mm) and a tab length of 0.303" (7.70mm) with a thickness of 0.032" (0.81mm). The terminal is non-insulated and uses a crimp termination style for secure wire attachment.



The contact is made from brass with a tin plating, providing reliable electrical performance and corrosion resistance. With an overall length of 19.00mm (0.748"), this connector is suitable for free hanging (in-line) mounting applications where a quick connect and disconnect functionality is required. It is commonly used in power distribution, automotive, and industrial wiring harnesses.

180351-2 Quick Information

Product Type: Quick Disconnect Terminal
Series: 180351
Canonical Name: TE Connectivity 180351-2 10-12 AWG Non-Insulated Female Quick Disconnect
Subcategory: Standard Female Quick Disconnect

180351-2 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: Non-Compliant

180351-2 Features

  • Non-insulated female quick disconnect terminal.
  • Accepts 10-12 AWG wire gauge.
  • Tin-plated brass contact for conductivity.
  • Crimp termination for secure connection.
  • 0.250 inch tab width standard size.

180351-2 Applications

  • Power distribution in wiring harnesses.
  • Automotive electrical system connections.
  • Industrial control panel wiring.
  • Appliance internal wiring connections.

180351-2 FAQs

5 frequently asked questions generated from this part’s specifications.
What wire gauge is compatible with the 180351-2 terminal?

The terminal accepts 10-12 AWG wire.

What is the tab width of the 180351-2?

The tab width is 0.250" (6.35mm).

Is the 180351-2 terminal insulated?

No, it is non-insulated.

What type of termination does the 180351-2 use?

It uses crimp termination.

What is the contact material and finish of the 180351-2?

The contact is brass with a tin finish.
