1803484 8 position 3.81mm pitch through hole vertical shrouded header with tin contacts. Rated 300V and 8A.
Mfr Part #:

1803484

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
8 position 3.81mm pitch through hole vertical shrouded header with tin contacts. Rated 300V and 8A.
✓ Total Stock: 62 pcs

1803484 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Partservice ✓
Non-Authorised Inventory information
62 pcs
On Request
62 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1803484 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1803484 Description

Short technical summary and product information.

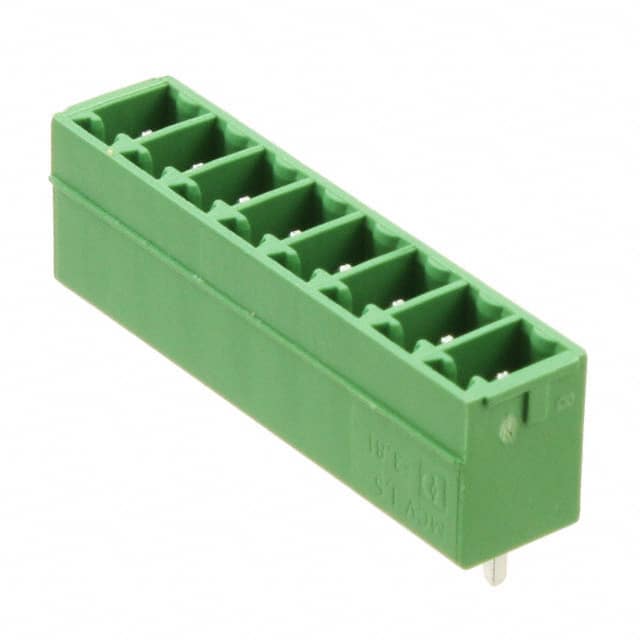

The Phoenix Contact 1803484 is an 8-position terminal block header with a 3.81mm pitch. It features a vertical orientation and a shrouded (4 side) design for secure mating. The header uses through hole mounting with solder termination and tin-plated contacts.



Rated for 300V and 8A, this header is suitable for wire-to-board connections in industrial control and automation systems. The green housing provides visual identification for terminal block applications.



This component is part of the Phoenix Contact terminal block header family, designed for reliable and repeatable connections in demanding environments.

1803484 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1803484 - 8 Position 3.81mm Pitch Through Hole Vertical Shrouded Header
Subcategory: Terminal Block Headers

1803484 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 (Unlimited)
REACH Status: REACH Unaffected

1803484 Features

  • 8 positions with 3.81mm pitch spacing.
  • Vertical through hole mounting style.
  • Shrouded header with 4 side protection.
  • Rated for 300V and 8A operation.
  • Tin plated contact mating finish.

1803484 Applications

  • Industrial control panel wiring connections.
  • Automation equipment signal and power interfaces.
  • Building automation and HVAC control systems.
  • PLC and I/O module wire termination.

1803484 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 1803484 header have?

The header has 8 positions.

What is the pitch of this terminal block header?

The pitch is 3.81mm (0.150 inches).

What is the voltage rating of the 1803484?

The voltage rating is 300V.

What is the current rating of the 1803484?

The current rating is 8A.

What mounting type does the 1803484 use?

It uses through hole mounting with solder termination.
