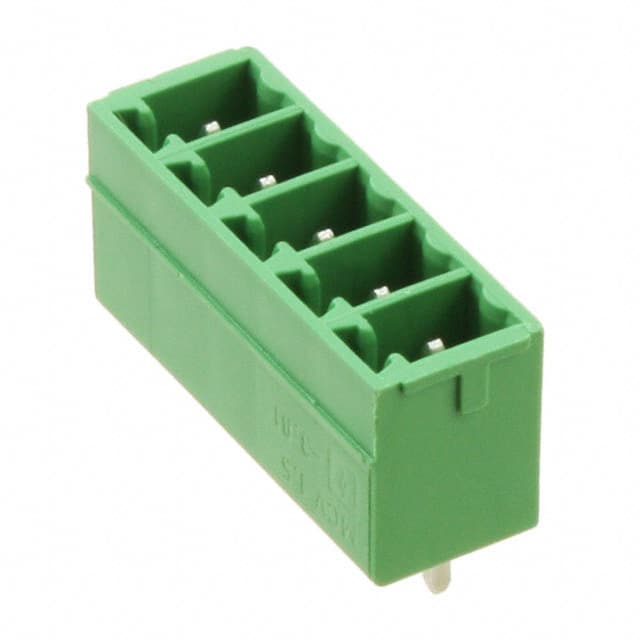

1803455 5 position, 3.81mm pitch, through hole vertical header, male pins, shrouded (4 side). Rated 300V, 8A.
Mfr Part #:

1803455

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
5 position, 3.81mm pitch, through hole vertical header, male pins, shrouded (4 side). Rated 300V, 8A.
✓ Total Stock: 69 pcs

1803455 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Bristol Electronics ✓
Non-Authorised Inventory information
69 pcs
On Request
69 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1803455 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Tape & Reel
Termination Style
Type
Voltage
View Similar Products (0)

1803455 Description

Short technical summary and product information.

The Phoenix Contact 1803455 is a 5-position terminal block header with male pins and a shrouded (4 side) design. It features a 3.81mm pitch and is mounted through hole with vertical orientation. The header is rated for 300V and 8A, with tin contact mating finish. The housing is green. This component is suitable for use in industrial control systems, power distribution, and signal connection applications where reliable wire-to-board connections are required. The through hole mounting provides robust mechanical attachment to the PCB.

1803455 Quick Information

Product Type: Terminal Block Header
Canonical Name: 5 Position 3.81mm Pitch Through Hole Vertical Header, Male Pins, Shrouded (4 Side)
Subcategory: Terminal Block Headers

1803455 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1803455 Features

  • 5 positions with 3.81mm pitch.
  • Through hole vertical mounting.
  • Rated 300V and 8A.
  • Tin contact mating finish.
  • Green shrouded housing.

1803455 Applications

  • Industrial control panel wiring.
  • Power supply output connections.
  • Signal distribution on PCBs.
  • Sensor and actuator interfaces.

1803455 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1803455 have?

5 positions.

What is the pitch of the 1803455?

3.81mm (0.150 inches).

What is the current rating of the 1803455?

8 A.

What is the voltage rating of the 1803455?

300 V.

What is the mounting type of the 1803455?

Through hole.

What is the termination style of the 1803455?

Solder.

What is the header orientation of the 1803455?

Vertical.
