| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
74 pcs
|
74 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Header Orientation | |
| Industrial Grade | |
| Lead Spacing | |
| Lead Style | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Positions Per Level | |
| SVHC Present | |
| Tape & Reel | |
| Termination Style | |
| Type | |
| Voltage |

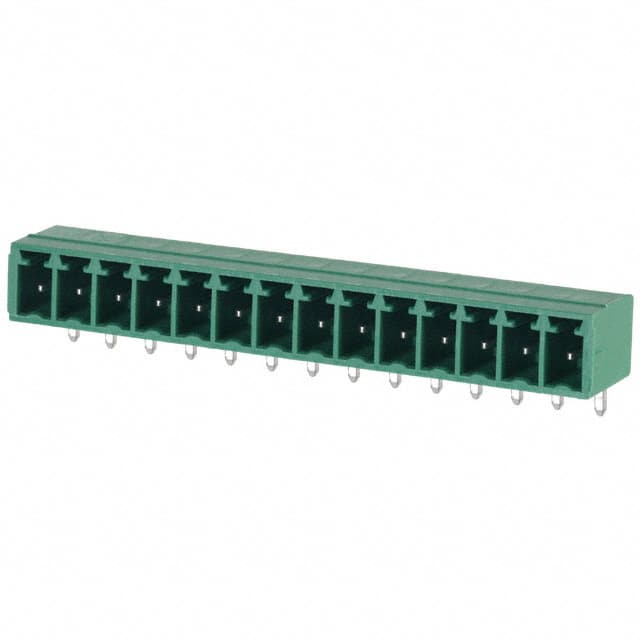

The Phoenix Contact 1803390 is a 14-position shrouded header designed for terminal block applications. It features a 3.81mm pitch and a right angle orientation, making it suitable for compact PCB layouts where space is limited. The header uses male pins with a tin contact mating finish and is terminated via through hole soldering.
Rated for 300V and 8A, this component is intended for use in industrial control systems and other applications requiring reliable wire-to-board connections. The green housing provides visual identification and the shrouded design offers protection for the pins.
This header is part of the Phoenix Contact terminal block product line and is RoHS and REACH compliant per unverified distributor data. It is designed for single-level use with 14 positions per level.
It has 14 positions.
The pitch is 3.81mm (0.150 inches).
The current rating is 8A.
The voltage rating is 300V.
It is through hole mounting with solder termination.
It is a 90° right angle header.
The contact mating finish is tin.
