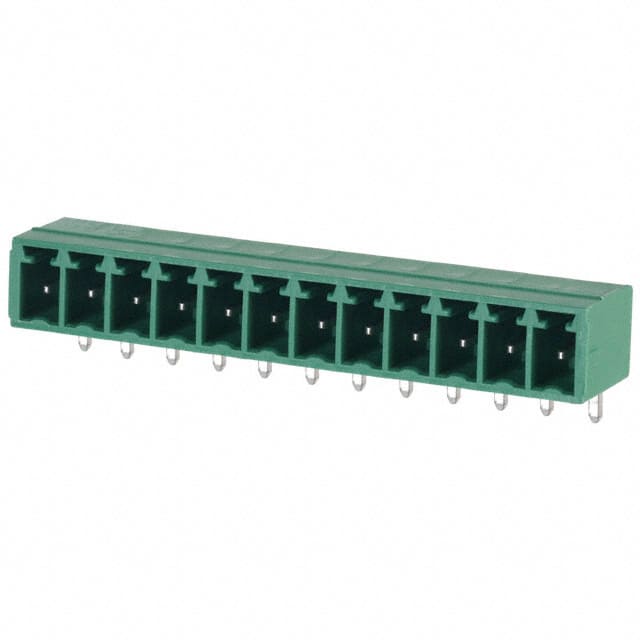

1803374 Phoenix Contact 1803374 is a 12 position, 3.81mm pitch, right angle header with male pins, shrouded on 4 sides, through hole mounting, rated 8A and 300V.
Mfr Part #:

1803374

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1803374 is a 12 position, 3.81mm pitch, right angle header with male pins, shrouded on 4 sides, through hole mounting, rated 8A and 300V.
✓ Total Stock: 4 pcs

1803374 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Innova Technologies ✓
Non-Authorised Inventory information
4 pcs
On Request
4 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1803374 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1803374 Description

Short technical summary and product information.

The Phoenix Contact 1803374 is a 12-position terminal block header with male pins, featuring a 3.81mm (0.150 inch) pitch and a right angle orientation. The header is shrouded on all four sides, providing protection and alignment for mating connectors. It is designed for through hole mounting with solder termination, making it suitable for permanent PCB attachment.



Rated for 8A current and 300V voltage, this header is appropriate for signal and moderate power distribution in industrial control, building automation, and instrumentation applications. The contact mating finish is tin, ensuring reliable electrical connections. The header is green in color and has a single level with 12 positions per level.



The component is listed as RoHS3 compliant, REACH unaffected, and has an MSL of 1 (unlimited). It is categorized under Headers, Plugs and Sockets within the Terminal Blocks family.

1803374 Quick Information

Product Type: Header, Male Pins, Shrouded (4 Side)
Canonical Name: Phoenix Contact 1803374 - 12 Position 3.81mm Right Angle Header, Male Pins, Shrouded (4 Side)
Subcategory: Headers, Plugs and Sockets

1803374 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1803374 Features

  • 12 position right angle header with 3.81mm pitch.
  • Rated for 8A current and 300V voltage.
  • Through hole mounting with solder termination.
  • Shrouded on all four sides for connector protection.
  • Tin contact mating finish for reliable connections.

1803374 Applications

  • Used in industrial control panel wiring.
  • Suitable for building automation systems.
  • Ideal for PCB-to-wire connections in instrumentation.
  • Applied in power distribution terminal blocks.

1803374 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1803374 have?

It has 12 positions.

What is the pitch of this header?

The pitch is 3.81mm (0.150 inches).

What is the current rating?

The current rating is 8A.

What is the voltage rating?

The voltage rating is 300V.

What is the mounting type?

Through hole mounting.

Is this header shrouded?

Yes, it is shrouded on all four sides.

What is the contact finish?

The contact mating finish is tin.
