1803329 Phoenix Contact 1803329 is a 7-position, single-level terminal block header with a 3.81mm pitch, right-angle orientation, and through-hole solder termination.
Mfr Part #:

1803329

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1803329 is a 7-position, single-level terminal block header with a 3.81mm pitch, right-angle orientation, and through-hole solder termination.
✓ Total Stock: 128 pcs

1803329 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
128 pcs
On Request
128 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1803329 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Current Rating
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
Voltage Rating
View Similar Products (0)

1803329 Description

Short technical summary and product information.

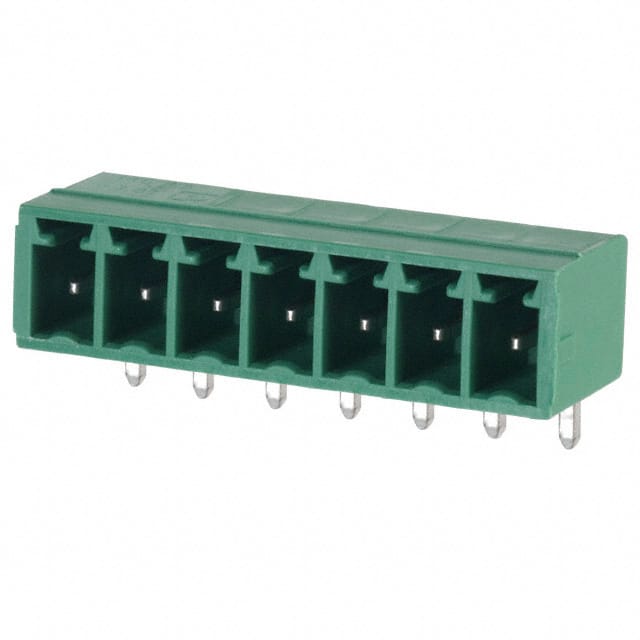

The Phoenix Contact 1803329 is a shrouded (4 side) header designed for use in terminal block interconnect systems. It features 7 positions arranged in a single level with a 3.81mm pitch, providing a compact and reliable connection point for wire-to-board applications.



The header is oriented at 90 degrees (right angle) and mounts via through-hole solder termination, making it suitable for perpendicular wire entry on PCBs. The contact mating finish is tin, and the housing is green. Electrical ratings include 8 A current and 300 V voltage, supporting a range of signal and low-power distribution needs.

1803329 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1803329 Header, Male Pins, Shrouded (4 Side), 7 Positions, 3.81mm Pitch, Right Angle, Through Hole
Subcategory: Terminal Block Headers

1803329 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1803329 Features

  • 7 positions with 3.81mm pitch spacing.
  • Right-angle orientation for perpendicular wire entry.
  • Through-hole solder termination for secure mounting.
  • Rated for 8A current and 300V voltage.
  • Shrouded (4 side) design for pin protection.

1803329 Applications

  • Industrial control panel wiring connections.
  • PCB-to-wire signal distribution systems.
  • Automation equipment terminal block interfaces.
  • Low-power sensor and actuator connections.

1803329 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 1803329 header have?

The header has 7 positions arranged in a single level.

What is the pitch of the Phoenix Contact 1803329?

The pitch is 3.81mm (0.150 inches).

What is the current and voltage rating of the 1803329?

The current rating is 8 A and the voltage rating is 300 V.

What mounting type does the 1803329 use?

It uses through-hole mounting with solder termination.

What is the orientation of the 1803329 header?

The header is oriented at 90 degrees (right angle).
