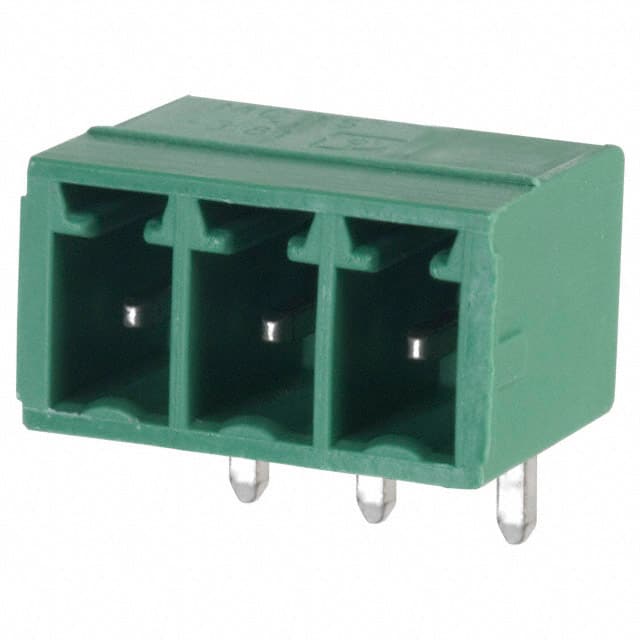

1803280 Phoenix Contact 1803280 is a 3-position, single level, right angle header with 3.81mm pitch, shrouded male pins, through hole mounting, and solder termination. Rated for 8A and 300V.
Mfr Part #:

1803280

Available from 1 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1803280 is a 3-position, single level, right angle header with 3.81mm pitch, shrouded male pins, through hole mounting, and solder termination. Rated for 8A and 300V.
✓ Total Stock: 57 pcs

1803280 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
57 pcs
On Request
57 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1803280 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1803280 Description

Short technical summary and product information.

The Phoenix Contact 1803280 is a 3-position, 1-level terminal block header designed for wire-to-board connections. It features male pins arranged in a single row with a 3.81mm pitch and is shrouded on all four sides for added protection. The header is oriented at a 90° right angle and mounts via through-hole solder termination.



Rated for 8A current and 300V voltage, the header uses tin-plated contact mating surfaces for reliable conductivity. The green insulating housing is standard for Phoenix Contact terminal block headers. This component is suitable for industrial control, automation, and power distribution applications requiring compact, secure connections.

1803280 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1803280 - 3 Position 3.81mm Pitch Right Angle Header, Male Pins, Shrouded
Subcategory: Terminal Block Header

1803280 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1803280 Features

  • 3 position single level header.
  • 3.81mm pitch right angle orientation.
  • Through hole solder termination.
  • Rated for 8A and 300V.
  • Green shrouded housing with tin contacts.

1803280 Applications

  • Industrial control panel wiring.
  • Automation and process control systems.
  • Power distribution and signal routing.
  • Compact wire-to-board connections.

1803280 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the Phoenix Contact 1803280 have?

The header has 3 positions arranged in 1 level with 3 positions per level.

What is the pitch of this header?

The pitch is 3.81mm (0.150 inches).

What is the current and voltage rating?

The header is rated for 8A current and 300V voltage.

What mounting type does this header use?

It uses through hole mounting with solder termination.

What is the header orientation?

The header is a 90° right angle orientation.

What contact finish does this header have?

The contact mating finish is tin.

What color is the housing?

The housing is green.
