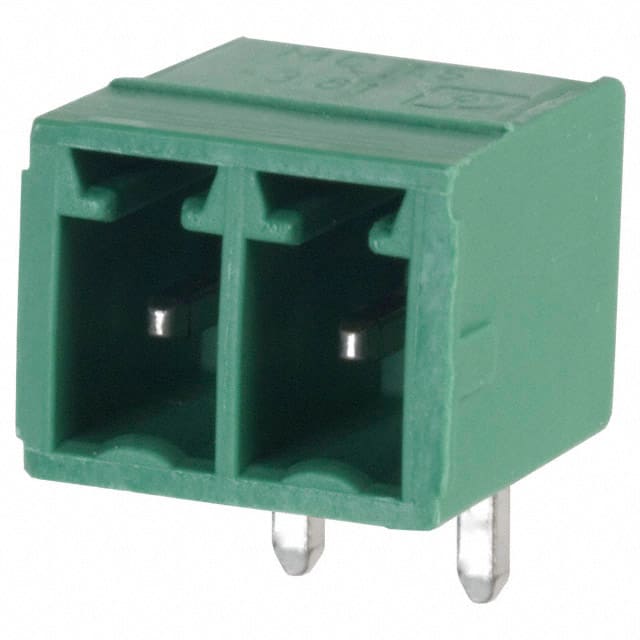

1803277 Phoenix Contact 1803277 is a 2-position terminal block header with a 3.81mm pitch, right angle orientation, and through hole mounting. It features tin-plated contacts and is rated for 8A and 300V.
Mfr Part #:

1803277

Available from 4 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1803277 is a 2-position terminal block header with a 3.81mm pitch, right angle orientation, and through hole mounting. It features tin-plated contacts and is rated for 8A and 300V.
✓ Total Stock: 2,085 pcs

1803277 Available from 4 distributors

✓ Authorised
✓ Non-Authorised
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1803277 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Header Orientation
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Positions Per Level
Termination Style
Type
Voltage
View Similar Products (0)

1803277 Description

Short technical summary and product information.

The Phoenix Contact 1803277 is a terminal block header designed for wire-to-board connections. It has 2 positions with a 3.81mm pitch, arranged in a single level. The header is shrouded on four sides for added protection. It features a right-angle orientation, making it suitable for applications where a low-profile connection is needed. The header is rated for 8A current and 300V voltage, with tin-plated contact mating surfaces. It is designed for through-hole mounting with solder termination, providing a reliable mechanical and electrical connection. Typical applications include industrial control systems, automation equipment, and signal distribution panels. The green housing color indicates standard Phoenix Contact marking. The component is RoHS compliant.

1803277 Quick Information

Product Type: Terminal Block Header
Canonical Name: Phoenix Contact 1803277 Terminal Block Header, 2 Positions, 3.81mm, Right Angle, Through Hole
Subcategory: Headers, Plugs and Sockets

1803277 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

1803277 Features

  • 2 positions with 3.81mm pitch.
  • Right angle header orientation.
  • Through hole solder termination.
  • Rated for 8A and 300V.
  • Shrouded design for protection.

1803277 Applications

  • Ideal for terminal block connections.
  • Used in industrial control panels.
  • Suitable for signal distribution.
  • Facilitates wire-to-board interfaces.
  • Common in automation equipment.

1803277 FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the 1803277 have?

2 positions.

What is the pitch of the Phoenix Contact 1803277?

3.81mm.

What is the current rating of the 1803277?

8A.

What is the voltage rating of the 1803277?

300V.

What is the mounting type for the 1803277?

Through hole.

What is the header orientation of the 1803277?

90° right angle.

What is the contact mating finish on the 1803277?

Tin.
