| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9 pcs
|
9 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Current Rating | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Processing Temperature | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Temperature Rating | |
| Termination | |
| Termination Style |

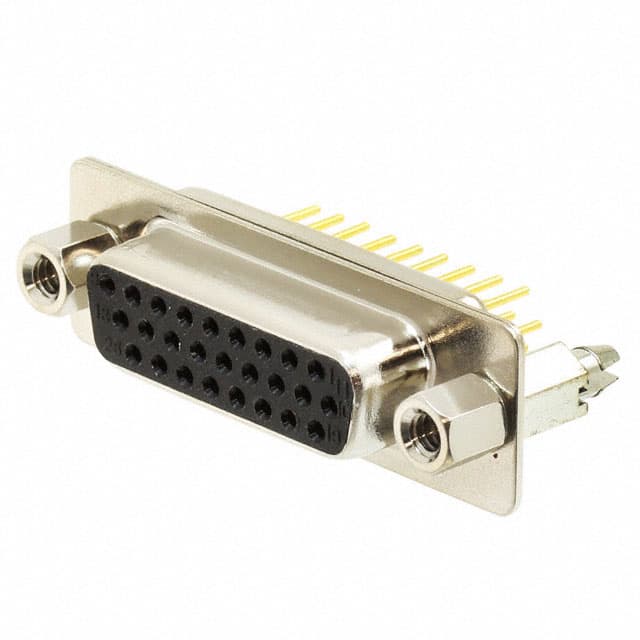

The 180-M26-213R911 is a 26-position, high density D-Sub receptacle from NorComp Inc. This connector utilizes female sockets with gold flash plated brass machined contacts for reliable signal transmission. The insulator is made of PA9T thermoplastic, rated UL94 V-0.
The connector supports panel mount with through hole solder cup termination. It includes features such as board lock and shielded metal shell for EMI/RFI protection. The shell is steel with nickel plating. Flange features include board side (4-40) and mating side female screwlock (4-40).
Electrical ratings include a contact current rating of 3 A per contact, contact resistance of 10 mOhm maximum, dielectric withstanding voltage of 1000 VAC, and insulation resistance of 5 GOhm minimum. The operating temperature range is -55 to +125 degrees Celsius.
The connector layout is shell size 2 (DA, A) high density. It accepts 28-24 AWG wire. This connector is suitable for applications requiring higher density than standard D-Sub connectors.
This connector has 26 positions.
The contact current rating is 3 A per contact.
The mounting type is panel mount with through hole solder cup termination.
The operating temperature range is -55 to +125 degrees Celsius.
