| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Dielectric Withstanding Voltage | |
| Features | |
| Flange Feature | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Shell Material | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination |

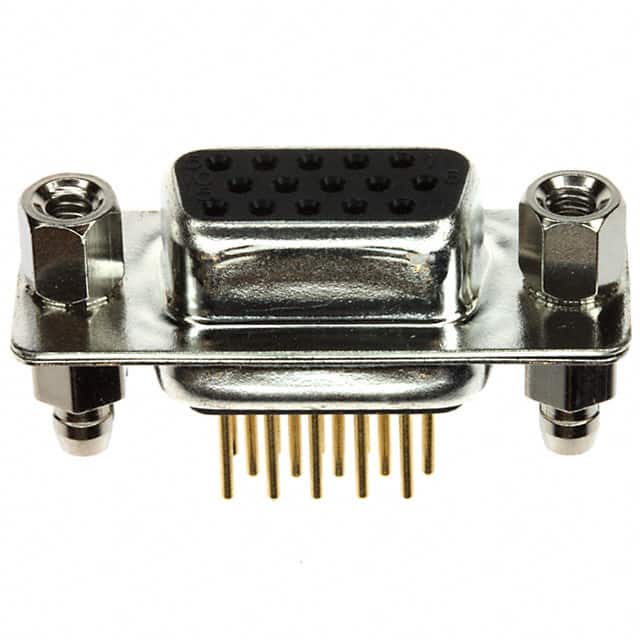

The NorComp 180-M15-213R911 is a high density D-Sub receptacle from the 180-M series. It offers 15 positions arranged in 3 rows, providing approximately 65% higher density than standard D-Sub connectors. The connector features a steel shell with nickel plating for EMI/RFI shielding and includes board lock and shielding features.
Electrical specifications include a current rating of 3A per contact, contact resistance of 10 mOhm maximum, dielectric withstanding voltage of 1000 VAC, and insulation resistance of 5 GOhm minimum. The operating temperature range is -55°C to +125°C.
The connector is designed for panel mount with through hole solder cup termination. It accepts 28-24 AWG wire. The insulator material is PA9T with UL94 V-0 flammability rating. The flange includes board side (4-40) and mating side female screwlock (4-40) hardware.
The connector has 15 positions arranged in 3 rows.
The current rating is 3A per contact.
It is panel mount with through hole solder cup termination.
The operating temperature range is -55°C to +125°C.
Yes, it is RoHS compliant as stated in the datasheet.
