| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
55 pcs
|
55 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Style | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Material | |
| Contact Resistance | |
| Contact Type | |
| Current Rating (Amps) | |
| Features | |
| Flange Feature | |
| Insulation Resistance | |
| Insulator Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Shell Material, Finish | |
| Shell Size, Connector Layout | |
| Termination | |
| Termination Style | |
| Termination Type | |
| Voltage Rating |

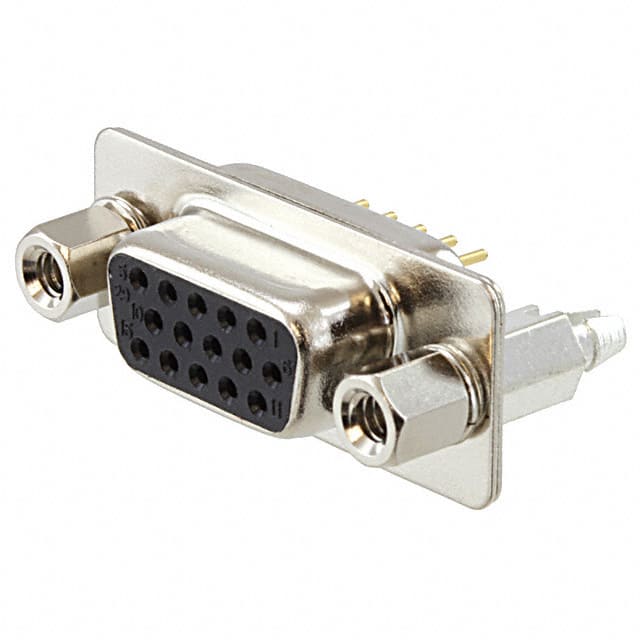

The NorComp 180-015-213R911 is a 15-position high density D-Sub receptacle featuring female sockets arranged in 3 rows. It offers a panel mount design with through hole vertical DIP solder termination, making it suitable for secure attachment to a PCB or panel. The connector is equipped with brass contacts plated with gold flash over nickel for reliable signal integrity and corrosion resistance.
This connector is rated for 3 A per contact with a contact resistance of 15 mOhm max and insulation resistance of 1000 MOhm min. It can withstand 500 VAC for one minute and operates over a temperature range of -50°C to 100°C. The shell is made of steel with nickel plating and includes board locks and shielding for enhanced EMI protection and mechanical retention.
The insulator is glass-filled thermoplastic rated UL94 V-0, ensuring flame retardancy. The flange features board side (4-40) and mating side female screwlock (4-40) hardware. This part is part of NorComp's 180 series, designed for applications requiring a compact, high-density interconnect solution.
3 A per contact.
-50°C to 100°C.
500 VAC for 1 minute.
Panel mount with through hole solder termination.
15 positions arranged in 3 rows.
15 mOhm maximum.
Glass-filled thermoplastic, UL94 V-0 rated.
