| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,920 pcs
|
3920 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination |

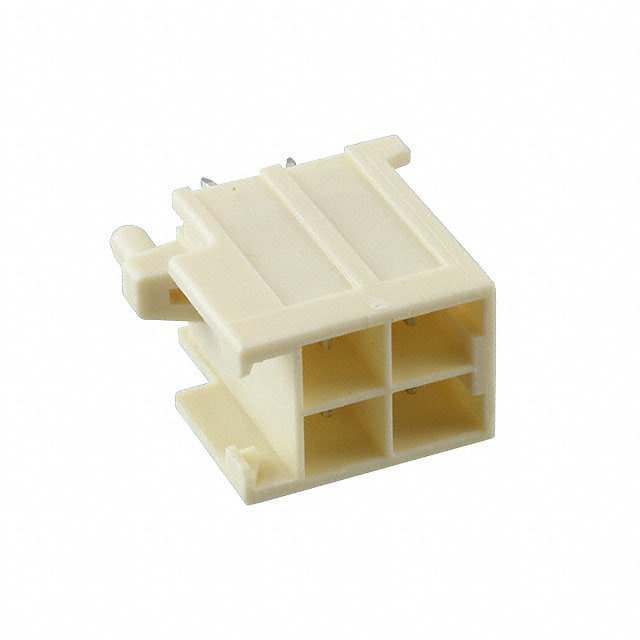

The TE Connectivity 179840-1 is a 4 position, 2 row, 3.96mm pitch shrouded header designed for board-to-cable/wire connections. This through hole connector features a 4-wall shrouded design with a locking ramp fastening system for secure mating. The header is constructed with a natural polyamide (PA66/Nylon 6/6) insulator rated UL94 V-0 for flammability.
The rectangular tab contacts are made of copper alloy with a tin finish, providing reliable electrical performance. The contact length is 3.81mm and the insulation height is 14.60mm. The connector includes a board guide feature for easier alignment during assembly. It is rated for an operating temperature range of -30°C to 105°C.
This header is suitable for various applications requiring a robust, polarized connection. The 3.96mm pitch and 4.60mm row spacing are common in power and signal interconnect designs. The kinked pin termination helps secure the component during the soldering process.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.18 | $2.18 |
| 25+ | $2.04 | $2.04 |
| 100+ | $1.97 | $1.97 |
| 250+ | $1.90 | $1.90 |
| 392+ | $1.84 | $1.84 |
| 1,176+ | $1.76 | $1.76 |
| 2,744+ | $1.20 | $1.20 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The pitch is 3.96mm.
It has 4 positions in 2 rows.
It is a through hole mounting type with kinked pin solder termination.
The operating temperature range is -30°C to 105°C.
The insulation material is Polyamide (PA66), Nylon 6/6 with a UL94 V-0 flammability rating.
