| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
680 pcs
|
680 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
262 pcs
|
262 pcs | On Request | 1 | On Request | On Request | 98 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style |

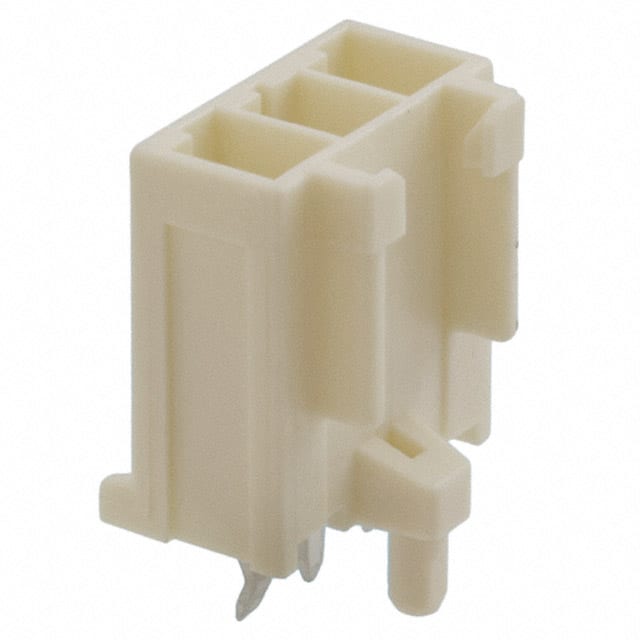

The TE Connectivity 179839-1 is a 3 position, single row header connector designed for board to cable/wire applications. It features a 3.96mm pitch and a shrouded 4-wall design for robust mating and protection of the tab contacts.
The header is through hole mounted with kinked pin, solder termination for secure board attachment. It is made with polyamide (PA66/Nylon 6/6) insulation in natural color, and copper alloy contacts with tin finish. The connector includes a locking ramp fastening type for secure cable retention and a board guide feature for accurate alignment.
The material flammability rating is UL94 V-0, and the operating temperature range is -30°C to 105°C. The current rating varies by wire gauge used with the mating connector.
3 positions in a single row.
3.96mm.
Through hole.
Yes, it is a shrouded 4-wall header.
-30°C to 105°C.
Polyamide (PA66), Nylon 6/6 with a UL94 V-0 flammability rating.
Locking ramp.
