| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
178 pcs
|
178 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
178 pcs
|
178 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

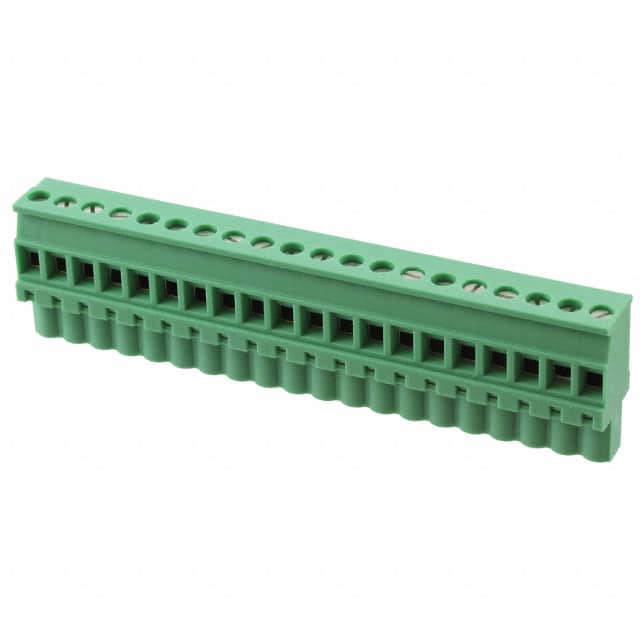

The Phoenix Contact 1792935 is a 20-position terminal block plug designed for reliable wire-to-board connections. It features a 5.08mm pitch and uses a screw rising cage clamp termination style, ensuring secure and vibration-resistant connections for wire sizes from 0.2 to 2.5mm². The plug is rated for 300V and 15A, making it suitable for a wide range of industrial control and power distribution applications.
This plug has a 270° wire entry angle, which facilitates flexible routing in tight spaces. It includes retention latches on the non-wire side for added mechanical security when mated with a header. The housing is green and the contact mating finish is tin, providing good conductivity and corrosion resistance.
The component is designed for free hanging (in-line) mounting, allowing for easy field installation without the need for additional hardware. It is RoHS3 compliant and has an MSL of 1 (unlimited), indicating no moisture sensitivity restrictions.
20 positions.
5.08mm (0.200 inches).
300V and 15A.
Screw - Rising Cage Clamp.
Free Hanging (In-Line).
0.2 to 2.5mm².
Green.
