| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Current Rating | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Voltage Rating | |
| Wire Gauge or Range |

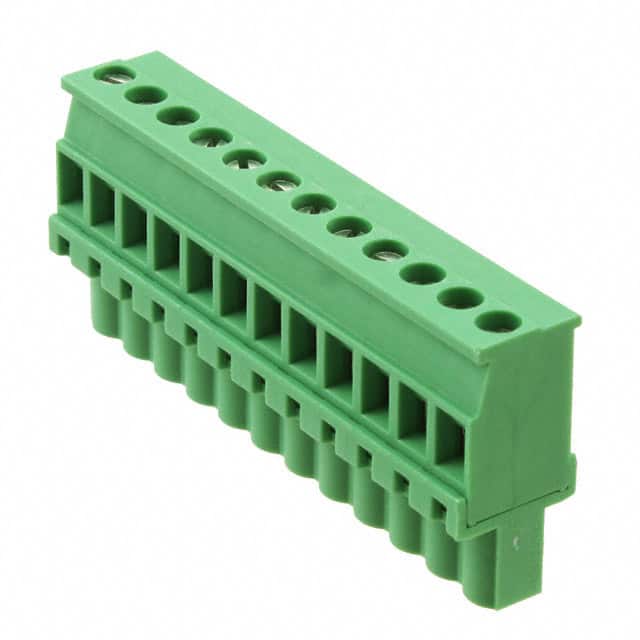

The Phoenix Contact 1792854 is a 12-position terminal block plug designed for reliable wire-to-board connections. It features a 5.08mm pitch and uses a screw - rising cage clamp termination style, ensuring secure and vibration-resistant wire retention. The plug accepts wire gauges from 0.2 to 2.5mm² and is rated for 300V and 15A.
This plug has female socket contacts with a tin mating finish and is configured for 270° wire entry, allowing flexible routing in tight spaces. The green housing includes retention latches on the non-wire side for added mechanical security when mated with a header.
The free hanging (in-line) mounting type makes it suitable for applications where the connector is not panel-mounted. It is a single-level plug with 12 positions per level, simplifying wiring in control panels and industrial equipment.
It has 12 positions.
The pitch is 5.08mm.
It is rated for 300V and 15A.
It uses free hanging (in-line) mounting.
It uses screw - rising cage clamp termination.
It accepts wire from 0.2 to 2.5mm².
The housing is green.
