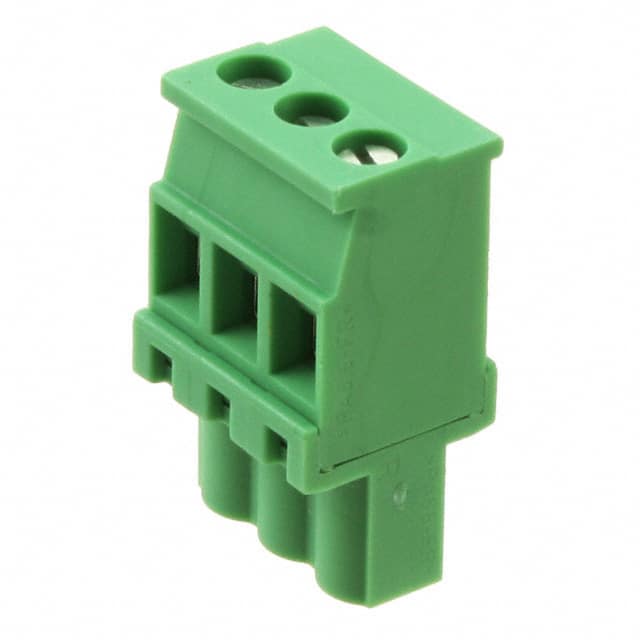

1792760 Phoenix Contact 1792760 is a 3-position, 5.08mm pitch terminal block plug with female sockets. It features a screw-rising cage clamp termination and free hanging mounting.
Mfr Part #:

1792760

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1792760 is a 3-position, 5.08mm pitch terminal block plug with female sockets. It features a screw-rising cage clamp termination and free hanging mounting.
✓ Total Stock: 1,238 pcs

1792760 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
619 pcs
On Request
619 pcs On Request 1 On Request On Request On Request On Request On Request
MW.FEP S.p.A. ✓
Non-Authorised Inventory information
619 pcs
On Request
619 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1792760 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1792760 Description

Short technical summary and product information.

The Phoenix Contact 1792760 is a 3-position terminal block plug with female sockets, designed for reliable wire-to-board connections. It features a 5.08mm pitch and a 270° plug wire entry, facilitating flexible routing in tight spaces.



This plug is rated for 15A and 300V, with a wire range of 0.2-2.5mm². The termination uses a screw-rising cage clamp mechanism, ensuring secure and vibration-resistant connections. The contact mating finish is tin, providing good conductivity and corrosion resistance.



The component is green in color and includes retention latches on the non-wire side for secure mating with headers. Its free hanging (in-line) mounting type allows for easy field installation without additional hardware.

1792760 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1792760 - 3 Position 5.08mm Pitch Plug, Female Sockets Terminal Block
Subcategory: Headers, Plugs and Sockets

1792760 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 - Unlimited
REACH Status: REACH Unaffected

1792760 Features

  • 3 positions with 5.08mm pitch.
  • Screw-rising cage clamp termination.
  • Rated for 15A and 300V.
  • Free hanging in-line mounting.
  • Retention latches for secure mating.

1792760 Applications

  • Industrial control panel wiring.
  • Power distribution and signal connections.
  • Building automation and HVAC systems.
  • Machinery and equipment interconnections.

1792760 FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the 1792760 have?

The 1792760 has 3 positions.

What is the pitch of this terminal block plug?

The pitch is 5.08mm (0.200 inches).

What is the current and voltage rating?

It is rated for 15A and 300V.

What type of mounting does this plug use?

It uses free hanging (in-line) mounting.

What termination style does the 1792760 have?

It uses a screw-rising cage clamp termination.
