| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
32 pcs
|
32 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Color | |
| Contact Mating Finish | |
| Current | |
| Features | |
| Lead Spacing | |
| Lead Style | |
| Mounting Type | |
| Number of Levels | |
| Number of Positions | |
| Pitch | |
| Plug Wire Entry | |
| Positions Per Level | |
| Termination Style | |
| Type | |
| Voltage | |
| Wire Gauge or Range |

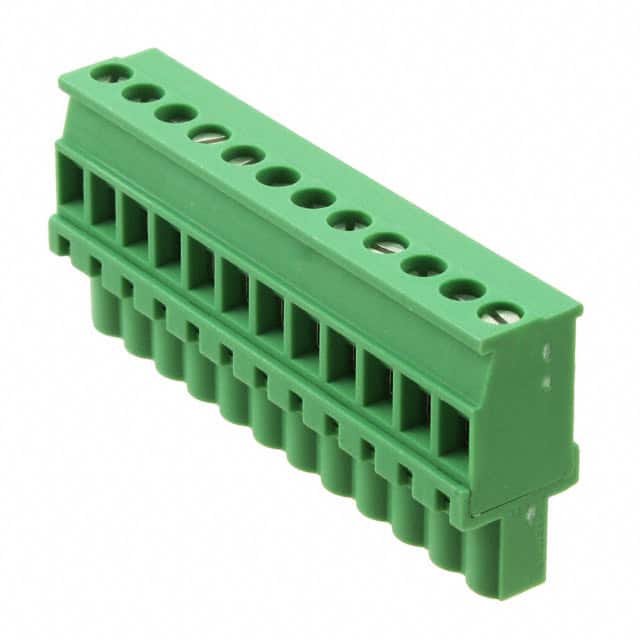

The Phoenix Contact 1792621 is a 12-position terminal block plug designed for reliable wire termination in industrial control and automation systems. It features a single level with 12 positions per level at a 5.00mm pitch, accommodating wire sizes from 0.2 to 2.5mm². The plug uses a screw rising cage clamp termination for secure and vibration-resistant connections.
Electrical ratings are 300V and 15A, with tin-plated contacts for good conductivity and corrosion resistance. The plug wire entry angle is 270°, allowing flexible routing in tight spaces. The housing is green and the mounting type is free hanging (in-line), making it suitable for panel or chassis wiring where a pluggable connection is needed.
Retention latches on the non-wire side provide additional security against accidental disconnection. This component is commonly used in conjunction with matching headers in terminal block systems. The 5.00mm pitch is a standard size for many industrial applications, ensuring broad compatibility with existing designs.
12 positions.
5.00mm.
300V.
15A.
Free hanging (in-line).
Screw - Rising Cage Clamp.
0.2-2.5mm².
