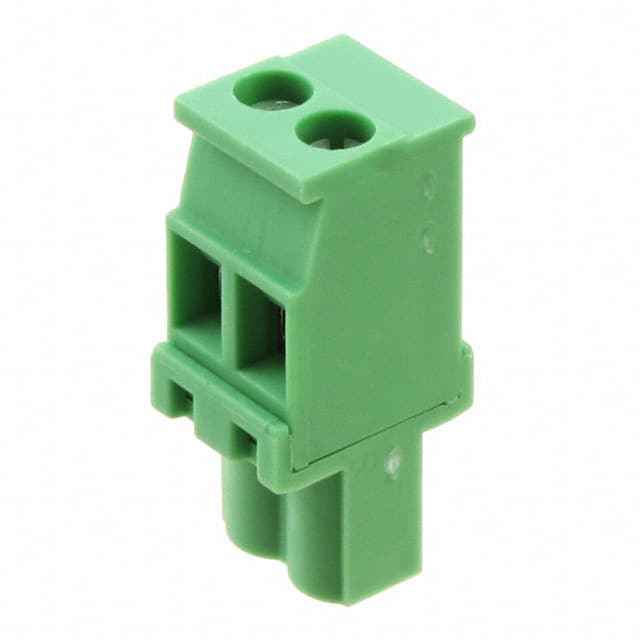

1792524 Phoenix Contact 1792524 2-position terminal block plug with 5.00mm pitch and 270° wire entry. Rated for 15 A and 300 V.
Mfr Part #:

1792524

Available from 2 distributors
Mfr Name: Phoenix Contact
Phoenix Contact
Phoenix Contact 1792524 2-position terminal block plug with 5.00mm pitch and 270° wire entry. Rated for 15 A and 300 V.
✓ Total Stock: 2 pcs

1792524 Available from 2 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Emiteli ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request On Request On Request On Request
Hybrid Electronics ✓
Non-Authorised Inventory information
1 pcs
On Request
1 pcs On Request 1 On Request On Request NO DC On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

1792524 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Color
Contact Mating Finish
Current
Features
Halogen Free
Lead Spacing
Lead Style
Mounting Type
Number of Levels
Number of Positions
Pitch
Plug Wire Entry
Positions Per Level
SVHC Present
Termination Style
Type
Voltage
Wire Gauge or Range
View Similar Products (0)

1792524 Description

Short technical summary and product information.

The Phoenix Contact 1792524 is a 2-position terminal block plug designed for wire-to-wire or wire-to-board connections. It features a 5.00mm pitch and a 270° wire entry angle, enabling flexible routing in tight spaces.



This plug uses a screw - rising cage clamp termination, accepting wire sizes from 0.2 to 2.5mm². It is rated for 15 A and 300 V, with tin-plated contacts. The housing is green and includes retention latches on the non-wire side for secure mating.



The free hanging (in-line) mounting style simplifies field installation without requiring a printed circuit board.

1792524 Quick Information

Product Type: Terminal Block Plug
Canonical Name: Phoenix Contact 1792524 Terminal Block Plug, 2 Position, 5.00mm Pitch, Free Hanging, 270° Wire Entry
Subcategory: Headers, Plugs and Sockets

1792524 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

1792524 Features

  • 2 position plug with 5.00mm pitch.
  • Screw - rising cage clamp termination.
  • Rated for 15 A and 300 V.
  • Green housing with retention latches.
  • Free hanging in-line mounting style.

1792524 Applications

  • Used in industrial control cabinet wiring.
  • Suitable for power distribution applications.
  • Ideal for field wiring of sensors and actuators.
  • Connects wire to terminal block headers.

1792524 FAQs

6 frequently asked questions generated from this part’s specifications.
How many positions does the 1792524 terminal block plug have?

The 1792524 has 2 positions.

What is the pitch of the 1792524?

The pitch is 5.00 mm.

What are the current and voltage ratings of the 1792524?

The current rating is 15 A and the voltage rating is 300 V.

What mounting type does the 1792524 use?

It uses free hanging (in-line) mounting.

What wire gauge can be used with this plug?

The accepted wire cross-section is 0.2 to 2.5 mm².

What termination style does this plug have?

It uses a screw - rising cage clamp termination.
